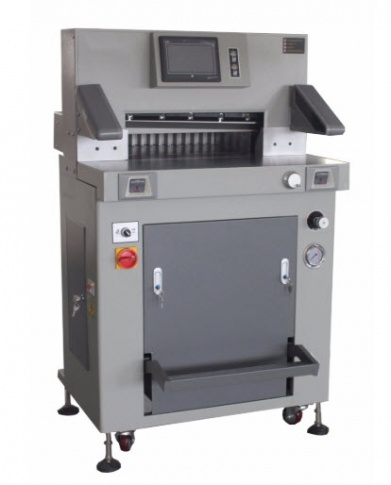

ERC 520H Heavy-duty Hydraulic Paper Cutting Machine
Call Toll Free: 877.336.6877 for Pricing
Availability
Online
In Store
Same Day
Description
ERC 520H Heavy-duty Hydraulic Paper Cutting Machine
FEATURES
- Design with CE standard rd front g rating safety protectionand back protection cover conform to safe system
- Heavy-duty stander ,symmetrical pressing paper functionand double hydraulic drive system
- Inclined cutting technology
- Spin cutter with outer adjusting depth curve technology device
- Adjustable gap of blade carrier technology with patented
- Oscillating oil cylinder technology
- Double orbit paper-push function for guarantee of precision
- Procedure design of circuit reset and digital displaying cutting size
- Optical Cutting Line
- Fashionable appearance design with patented
SPECIFICATIONS
- Max. Cutting size :520 mm(20.50 Inch)
- Min. Cutting size :30 mm (1.20 Inch)
- Cutting thickness : 80 mm (3.14 Inch)
- Cutting Length Behind Knife : 520 mm (20.50 Inch)
- Table Length In Front of Knife : 40 mm (1.60 Inch)
- Adjustable Clamping Pressure : 200 to 20000N
- Cutting precision : ± 0.2 mm

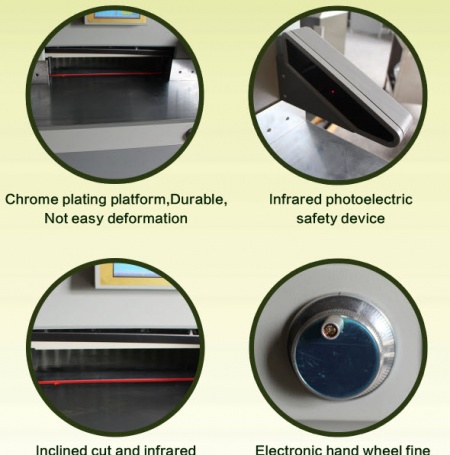

- Safety : Infrared Photoelectic
- Clamp Mode : Hydraulic + Mechanical
- Push Mode : Automatic

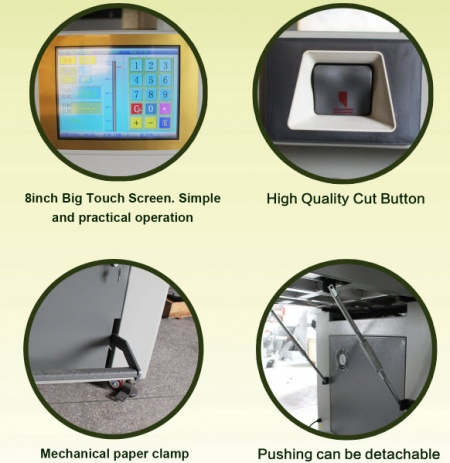

- Display : Touch Screen
- Program Control: Yes (100 group 20 Cuts)
- Power supply : AC220V(110)± 10% 50Hz(60Hz) 2.5kw
- Net weight : 450 kg (992 LBS) (15872 Oz)
- Machine dimension(D*W*H) : 1280 x 1010 x 1430 mm (51 x 40 x 56 Inch)
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
| Manufacturer Part #: | |
| Dimensions (LxWxH): | 51.00in. x 40.00in. x 56.00in. |
