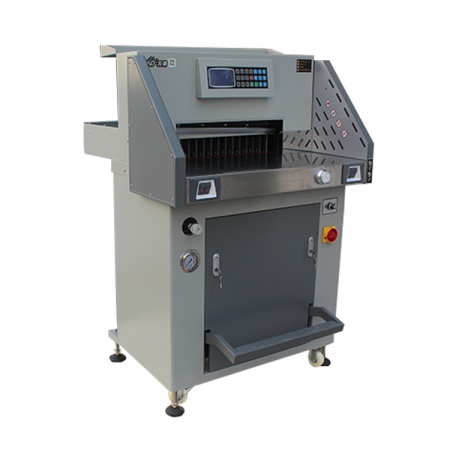

ERC 520R Hydraulic Program-Control Paper Cutting Machine
Call Toll Free: 877.336.6877 for Pricing
Availability
Online
In Store
Same Day
Description
ERC 520R Hydraulic Program-Control Paper Cutting Machine

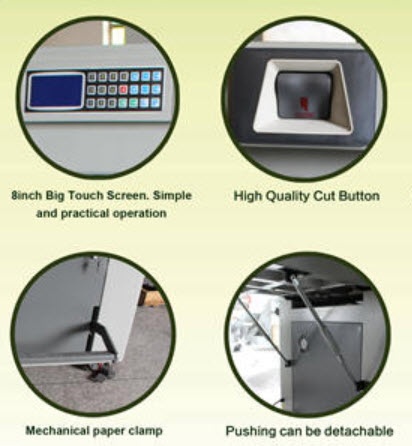

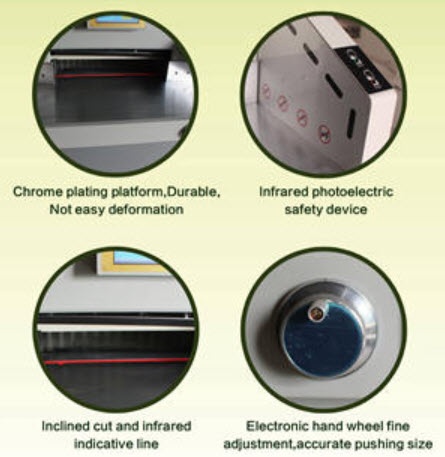

FEATURES
- Mechanical pedal for pressing paper: The device is easy and safety for alignning the paper which corresponds the CE standards.
- The paper pusher platform can be folded. And side table cab be chose.
- Electronic handwheel fine-tuning: push paper size precision fine-tuning, precision is higher
- High quality touch screen: 7 inch screen, easy to operate with digital control, program control and segment mode(only for H series)Big LCD (only for R series)
- 100 programs memory cut and Self-check function, malfunction code display function, count function
SPECIFICATIONS
- Max. Cutting size :520 mm(20.50)
- Min. Cutting size :30 mm (1.20 Inch)
- Cutting thickness : 80 mm (3.14 Inch)
- Cutting Length Behind Knife : 520 mm (20.50)
- Table Length In Front of Knife : 40 mm (1.60 Inch)
- Adjustable Clamping Pressure : 200 to 20000N
- Cutting precision : ± 0.2 mm
- Safety : Infrared Photoelectic
- Clamp Mode : Hydraulic + Mechanical
- Push Mode : Automatic
- Display : LCD
- Program Control: Yes (100 group 12 Cuts)
- Power supply : AC220V(110)± 10% 50Hz(60Hz) 2.5kw
- Net weight : 450 kg (992 LBS) (15872 Oz)
- Machine dimension(D*W*H) : 1280 x 1010 x 1430 mm (51 x 40 x 56 Inch)
