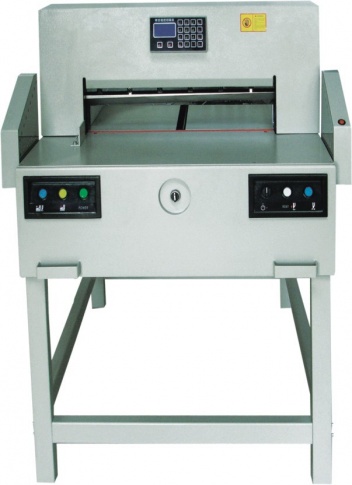

ERC 7208PX 28.34 Inch Cut Width 3.14 Inches Cut Height Digital Control Programmable Electric Paper Cutter
Description
ERC 7208PX 28.34 Inch Cutting Width 3.14 Inches Cutting Height Digital Control Programmable Electric Paper Cutter with 100 Program Groups and Each Group has 20 cuts
When making your purchase of this item, consider that we carry all parts for this Cutter and offer you support! We are in the USA and you can easily reach us by CHAT, E-mail, Fax, and Telephone. See if our competitors can make those same statements. Most of them do not and cannot.
PRODUCT FEATURES:
- Designed with CE standards, front grating safety protection and back
- 100 Program Groups and Each Group has 20 cuts
- Protection cover as a safety feature
- Independent motors perform the clamping | pressing od paper and cutting of the paper
- Inclined, angled cutting technology
- Automatic adjustable depth
- Adjustable blade gap between blade and paper
- Special motor for cutting function designed for precise cutting
- Extra strong main motor
- Programmed circuit design, allowing nine programs with subprogram
- Easy to set and change Cutting Programs
- Electronic self-detection of malfunctions
- Precise numerical controls for pushing paper with backstop
- Easy viewable Lighted Optical Cutting Line
- Practical design makeing the Cutter easy to use and user friendly
SPECIFICATIONS
- Model: 7208PX
- Max. Cutting Size: 720mm (28.34 Inch)
- Min. Cutting Size: 30mm (1.18 Inch)
- Cutting Thickness: 80mm (3.14 Inch)
- Cutting Precision: ± 0.3mm
- Blade to Maximum Back Stop Location: 28.34 inches (720mm)
- Blade to Front Edge of Cutter: 16.53 inches (42cm)
- Work Area from Front Edge of Cutter to Max Back Stop: 44.87 inches.
- Pressing Paper Mode: Automatic
- Pushing Paper Mode: Automatic
- Program: Yes
- Display: Digital
- Power Supply: AC220V(110V)± 10%/50HZ60HZ1.5KW
- Net Weight: 320 KG (706 LBS)
- Machine Dimensions Net: (HxDxW): 1110 x 950 x 1390 mm (44 x 38 x 55 Inch)
Shipping Information: Shipping Dimensions (HxDxW):1500x1390x940mm | 59.055 x 54.72 x 37 inches | Shipping Weight Gross: 410 KG | 903.89 lbs.
