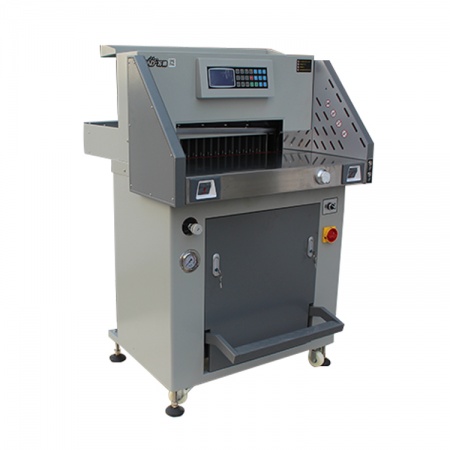

ERC 720R Hydraulic Program-Control Paper Cutting Machine
Call Toll Free: 877.336.6877 for Pricing
Availability
Online
In Store
Same Day
Description
ERC 720R Hydraulic Program-Control Paper Cutting Machine

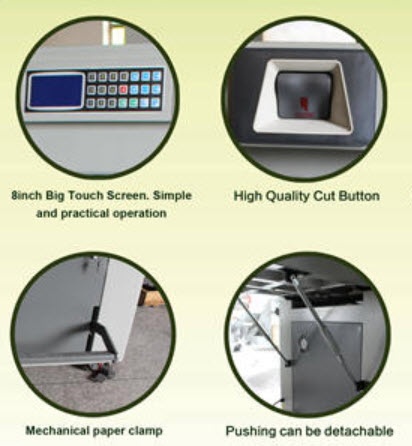

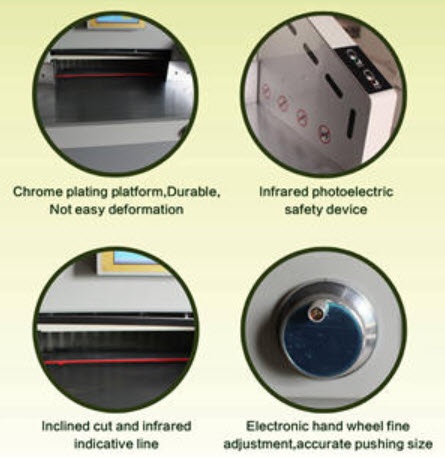

FEATURES
- Mechanical pedal for pressing paper: The device is easy and safety for alignning the paper which corresponds the CE standards.
- The paper pusher platform can be folded. And side table cab be chose.
- Electronic handwheel fine-tuning: push paper size precision fine-tuning, precision is higher
- High quality touch screen: 7 inch screen, easy to operate with digital control, program control and segment mode(only for H series)Big LCD (only for R series)
- 100 programs memory cut and Self-check function, malfunction code display function, count function
SPECIFICATIONS
- Max. Cutting size :720 mm(28.40 Inch)
- Min. Cutting size :30 mm (1.20 Inch)
- Cutting thickness : 80 mm (3.14 Inch)
- Cutting Length Behind Knife : 720 mm(28.40 Inch)
- Table Length In Front of Knife : 40 mm (1.60 Inch)
- Adjustable Clamping Pressure : 200 to 20000N
- Cutting precision : ± 0.2 mm
- Safety : Infrared Photoelectic
- Clamp Mode : Hydraulic + Mechanical
- Push Mode : Automatic
- Display : LCD
- Program Control: Yes (100 group 12 Cuts)
- Power supply : AC220V(110)± 10% 50Hz(60Hz) 2.5kw
- Net weight : 550 kg (1213 LBS) (19408 Oz)
- Machine dimension(D*W*H) : 1550 x 1200 x 1460 mm (61 x 47 x 58 Inch)
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
| Manufacturer Part #: | |
| Dimensions (LxWxH): | 61.00in. x 47.00in. x 58.00in. |
SPECIFICATIONS
| |
