Description

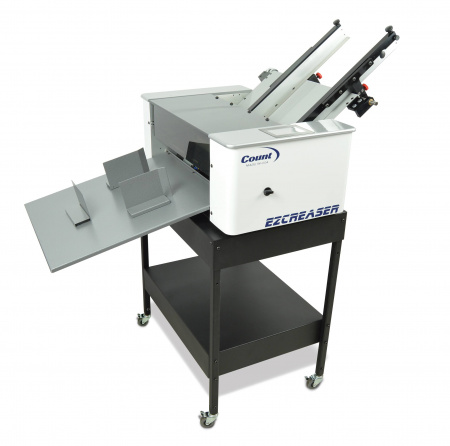

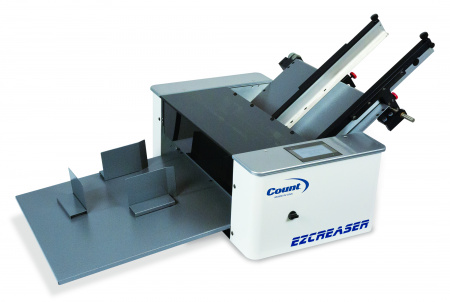

COUNT | EZCreaser Digital Creasing and Perforating Machine

The COUNT EZCreaser gives you the robust features you need at an economical price, for lower to medium volume creasing, perforating and scoring. You get the speed and reliability of a top-feed automatic friction paper feeder, with smooth, consistent operation. You get a machine that’s simple to set up, and easy for anyone to use with the popular COUNT touch-screen operation, and one-touch automatic set-ups built in. And you get even higher speeds when operating in perf mode, with 5 interchangeable perf wheels (including micro-perf) and score assembly options available.

Need Parts for the EZCreaser? We have them.
See Below. All Parts are in Stock

FEATURES

• Offers a reliable top-load friction paper feed.
• CAM actuated compression creasing.
• Automated distance recognition allows auto setups for your most common creases and corresponding folds, including perfect binding.

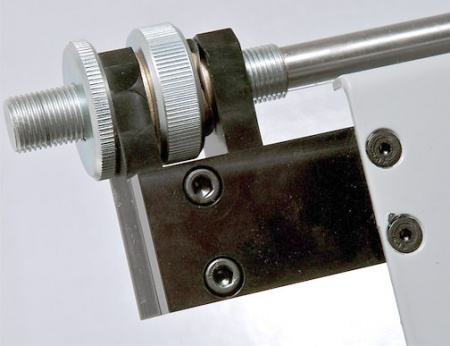

• Comes standard with the rotary perf wheel assembly.
• Optional micro-perf and score wheel assemblies are available.
• Includes micro-laterally adjustable feed rails and a sheet counter for batch and total counting.
• Two-sided die creasing rod accommodates heavier stock- simply remove and flip over to change from narrow to the wide crease.
• User-friendly touch screen for easy setup and control of the machine.

SPECIFICATIONS

• Paper Feed :Friction
• Max Crease Speed :4,500
• Max Perf/Score Speed : 12,000
• Paper Weight Range : 60 – 350 (gsm)
• Max Sheet Size : 24.0 L x 17.0 W in (61.0 x 43.2 cm)
• Min Sheet Size : 4.5 L x 4.5 W in (11.4 x 11.4 cm)
• Max Crease Locations per Sheet : 12
• Max Perf/Score Locations per sheet : 4
• Paper Fold Options: Bi-Fold, Tri-Fold, Z-Fold, Letter Fold, Roll Fold, Gate Fold, Double Gate Fold, Double Parallel Fold, Perfect Bind: No Hinge, Single Hinge, Double Hinge
• Scoring : Optional
• Touch Screen Controls : True
• Product Dimensions : 47.0 L x 29.0 W x 22.0 H in (119.4 x 73.7 x 55.9 cm)
• Product Weight : 144 lbs (66 kg)
• Electrical: 115 V, 60 Hz, 20 A or 230 V, 50 Hz (Check before purchasing)

Spare/Replacement Part for Martin Yale EZCreaser Digital Creasing and Perforating Machine

DEMO VIDEO
