FlexiPunch-M Heavy-Duty Manual Modular Punch with Interchangeable Die Feature
Description
FlexiPunch-M Heavy-Duty Manual Modular Punch with Interchangeable Die Feature
FOR RELATED PRODUCTS CLICK ON THE RELATED ITEM TAB ABOVE
FOR PARTS, SUPPLIES AND ACCESSORIES CLICK ON THE ACCESSORIES TAB ABOVE

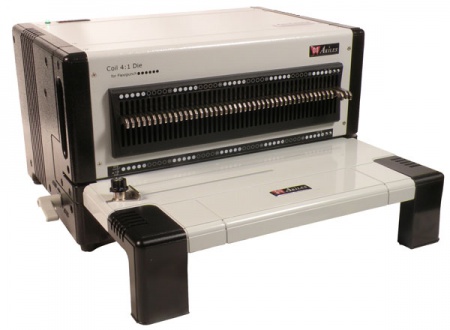

FlexiPunch-M is an innovative modular punching machine with manual operation and an affordable price that gives you the binding options you need in everyday work. You can do a coil binding job, and moments later squeeze in a wire or comb binding project using the same primary punch. The high-quality precision die sets available with this machine will last for years of production. One die of your choice is provided with the unit.
Suggested Supplemental Modules
We offer a variety of supplemental binding modules to the FlexiPunch-M, that will help you complete your binding jobs easily & quickly.
For Comb Binding, we suggest the following Comb Finisher:
- For Wire Binding, we suggest the following Wire Finisher:
For Coil Binding, we suggest one of the following Coil Finishers:
- Finish@Coil E1 High Capacity Coil Inserter + Electric Crimper Module
- Finish@Coil M High Capacity Coil Inserter Module with Manual Crimpers
- Roll@Coil Coil Inserter Module
Features
- High Volume Manual Punch Capacity: Up to 25 sheets of 20lb paper per lift.
- Interchangeable Die Sets with Quick Die Change Design: Easily change from one punch pattern to another within seconds, no tools needed!

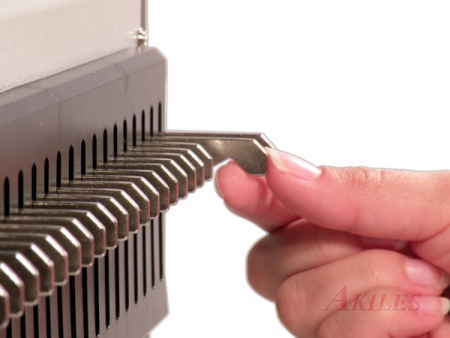

- Fully Disengageable Pins on all Dies: Allows punching of all paper sizes without partially punched holes at either end.

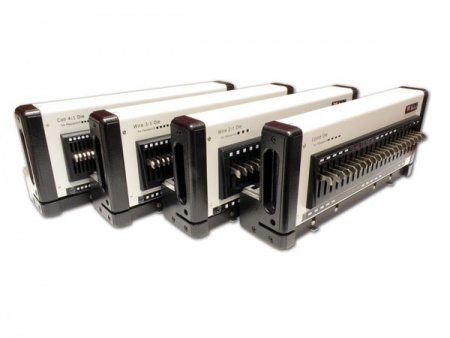

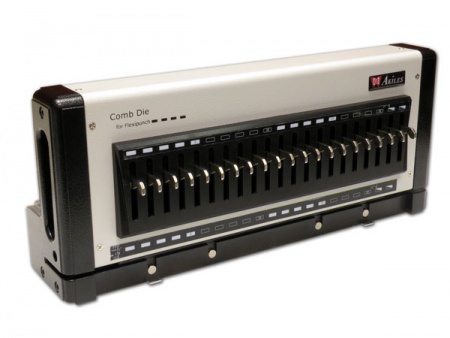

- Choice of 4 Different Punch Dies: Choose from Comb (rectangular holes), Wire 2:1 (square holes), Wire 3:1 (square holes) and Coil 4:1 (0.2475") (round holes).
- Adjustable Depth Margin: Available for all punch dies, this key feature provides the correct punch margin depth for each element or book size.
- 12" Single Punch Length with Open Ends: Enables easy punching of Letter or A4 sizes, as well as even longer sheet sizes.
- Rugged Heavy-Duty Design: All metal construction, including heavy cast side plates. Non-skid feet.
- Weight: 24 Lbs
- One year warranty
| Model: | FlexiPunch-M |
| Available Die Sets & Hole Shape: | COMB (rectangular) WIRE 2:1 (square) WIRE 3:1 (square) COIL 4:1 (0.2475�) (round) |
| Operation: | Manual |
| Single Punch Capacity: | Up to 25 sheets of 20 lbs paper |
| Single Punch Length: | 12 ½ (Letter or A4 size) with open ends for longer sheets |
| Fully Disengageable Pins: | Yes (on all die sets) |
| Adjustable Depth Margin: | Yes (4-step adjustment) |
| Machine Dimensions: | 14.75" L x 20.5" W x 21.25" H (machine with handle) 20" L x 18.5" W x 13.5" H (carton) |
| Die Set Dimensions: | 16.5" L x 4.75" W x 6.75" H (die set) 18.5" L x 6.75" W x 10.5" H (carton) |
| Machine Weight & Volume: | 24 Lbs & 2.91 Cbft |
| Die Set Weight & Volume: | 18 Lbs & 0.76 Cbft |
| Warranty: | One year |
