Foster - On-A-Roll Lifter Grande Models Lifts Rolls up to 1,540 lbs (700 kg) (61590)
Description

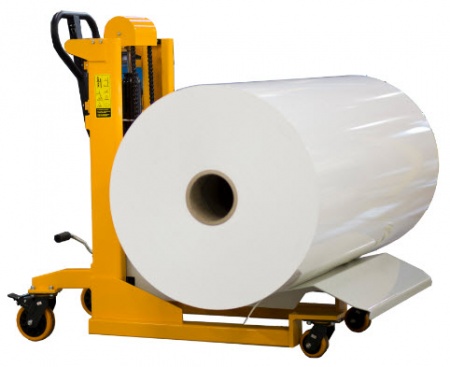

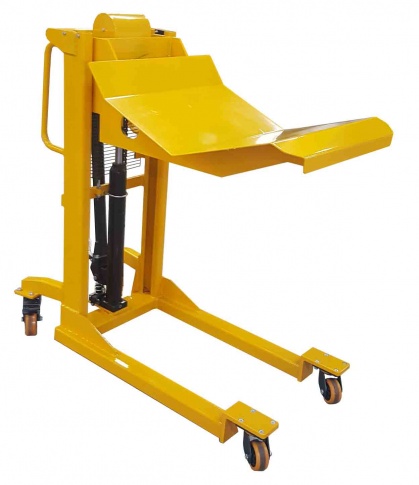

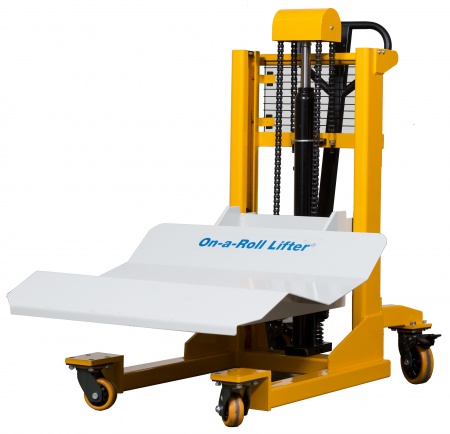

Foster - On-A-Roll Lifter Grande Models Lifts Rolls up to 1,540 lbs (700 kg) (61590)
Specifically designed to handle large diameter, heavy rolls.
Need a workhorse lifter that can manage master rolls? The Foster On-a- Roll Lifter Grande is just the ticket. Designed specifically for roll converters, package printers, and other businesses needing to handle very heavy media, this beefy lifter lets one operator move rolls as heavy as 1,540 lbs (700 kg). The specially designed tray accommodates rolls for easy loading and unloading, as well as transporting. If lifting heavier rolls, the Grande Plus allows operators to move rolls as heavy as 2,000 lbs (907 kg) and the Grande Max can handle up to 2,200 lbs (1000 kg).
In any shop handling rolls of print media or other material, a Foster On-a-Roll Lifter® is a must-have tool. Here are just a few reasons:
- Material damage is reduced or eliminated when moving rolls.
- Large media and heavy material rolls are handled quickly and easily.
- The simple hydraulic foot pump makes lifting effortless.
- Nylon safety straps enable one operator to move even the heaviest media rolls.
- 2-year warranty on all wheels, hydraulics and media tray. 5-year warranty on cross bars.
Outstanding Features of the On-A-Roll Grande Models Lifter
FEATURES
- Pair of heavy-duty swivel casters with easy step-on locking brake
- Specially designed tray for easy loading and unloading rolls
- Reduces on-the-job injuries and enables all workers to move heavy rolls
- User-friendly operation avoids costly and dangerous handling mistakes that damage media
- Rugged construction ensures long lifter life
- Single-person operation saves labor and time
- Foot pump allows for smooth, effortless lifting within minutes.
- 2-year warranty on all wheels, hydraulics and media tray. 5-year warranty on cross bars.

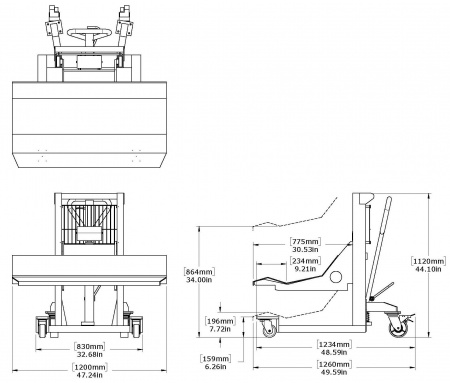

SPECIFICATIONS
- Roll Weight Capacity: 1,540 lbs (700 kg)
- Min. Tray Height: 6.69†(17 cm)
- Lift Height: 34" H (86.5 cm)
- Max. Roll Width: 61" (155 cm)
- Max. Roll Diameter: 31.49" (80 cm)
- Overall Media Lifter Dimensions (W x D x H): 27.56â€W x 49.74â€D x 44.1"H (70 x 126.33 x 112.01 cm)
- Bottom Fork Clearance: 6.3†(15.9 cm)
- Front Swivel Casters: 4" (10.16 cm)
- Rear Swivel Casters: 6" (15.24 cm)
- Media Lifter Weight: 177 lbs (80 kg)
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
| Manufacturer Part #: | |
| Dimensions (LxWxH): | 28.00in. x 50.00in. x 44.00in. |
SPECIFICATIONS
| |
