Description

Scanna | Gatescan-P Portable Walkthrough Metal Detector

Gatescan-P is the world’s most versatile walk-through metal detector as it can be can be deployed and transported to virtually any location and be up and running within five minutes by a single operator! It has multi-zone or zone specific detection and is designed for use in demanding environments.

Gatescan-P is used throughout UK police forces in the fight against knife crime, Gatescan P is ideal for sporting events, nightclubs, conferences, schools, VIP security or for any event or location requiring high discrimination metal detection combined with ease of use and total portability.

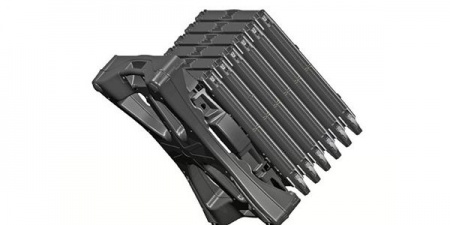

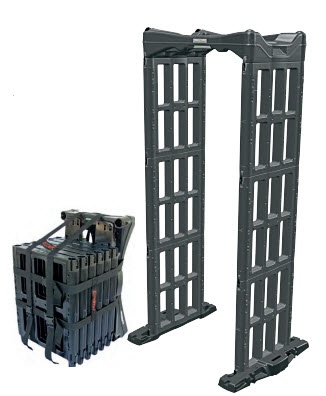

Gatescan-P is a remarkably user-friendly walkthrough metal detector that is straightforward to operate with minimal operator training required. When not in use Gatescan-P collapses into a compact, portable unit on wheels for easy transportation between sites.

Gatescan will operate for up to 40 hours on a single battery charge and can be completely recharged overnight. The unit can be charged whilst erected using the mains charger or whilst collapsed using the mains charger with y-connector. Gatescan-P is available with a protective cover which protects the unit from dust, dirt and scratches during storage and transit. Gatescan-P can be used in or outdoors making it ideal for event security and it has a weather protective cover accessory which protects the arch during rainy conditions.

We stock a fleet of Gatescan-P metal detectors which are available for short and long term rentals.

KEY FEATURES

• Head to toe, zone specific detection
• Digital I/O, secured access control panel that has been designed for intuitive ease-of-use and has a built-in self-diagnostic function that will notify operators immediately if there is a situation requiring attention.
• In and outdoor use (IP52) - pop up shelter available for rainy weather
• 3 sensor zones with LEDs
• 100 levels of adjustable sensitivity
• Battery life of 40 hours, no reliance on mains
• Total weight of less than 50 kgs
• No van or roof-rack needed for moving it around

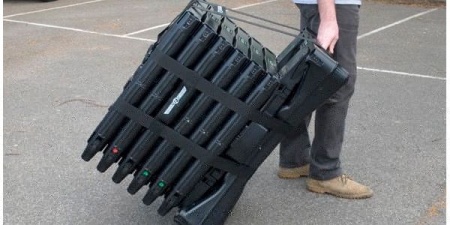

• Inbuilt wheels and handle for ease of transit
• No assembly tools - clips together in minutes

Standard System Configuration

• Gatescan-P comprising 3 transmitter panels, 3 receiver panels, crosspiece, 2 battery base
• Mains Cable
• Webbing Straps
• Operating Manual
• 12 month back to base exchange warranty

Technical Specifications

Power

• Power Supply: 100V +/- 15% and 220V +/- 15% 50/60 hz
• Battery Life: 40 hours

Size and Weight

• Portable Dimensions: H: 93cm x W: 58 cm x D: 66 cm. (36 x 23 x 26 inch)

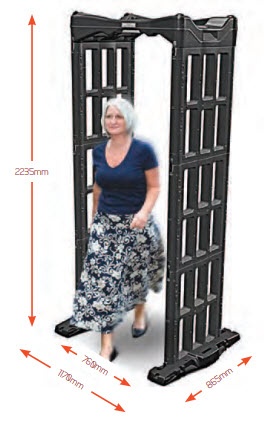

• Assembled: H (internal) 208 cm x W (internal) 76 cm x D 86.5 cm
• H (external) 223.5 cm x W (external) 117 cm x D 86.5 cm
• Weight: 40 kgs (90 lbs)

Safety and Emissions

Magnetic media: Will not damage magnetic tape, computer discs, CDs DVDs, video tape, ID cards, Credit Cards
Standards: Gatescan is designed to meet regulatory standards: FAA, NILECJ-0601.00.
EMC: Designed for EMC compliance (CE)

Environmental

Temperature: -20 - + 70 C
Max Humidity: 95%
IP Rating: IP52
UV Resistant
