Description

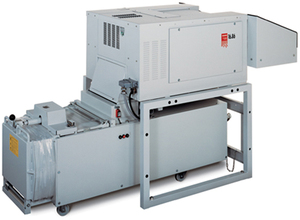

Intimus 16.86 Level P-3 Industrial Shredder + 870 Baler Combination (6 x 50 mm Shred Size) Item # 656124/475904

P-3 | Heavy-duty shredder engineered for high-performance in centralized applications, equipped with an integrated conveyor belt and baling press. It effortlessly handles up to 290 sheets simultaneously, delivering an impressive throughput of approx. 480 kg/h.

The Intimus 16.86 SmartShred stands out as a robust, heavy-duty document shredder featuring a feed conveyor belt. It efficiently shreds and compacts materials into bales simultaneously. Equipped with a user-friendly touchscreen and programmable logic controller (PLC), it offers various functionalities such as language selection, recording of operating hours, display of machine processes, precise error reporting, and maintenance reminders, streamlining maintenance procedures. The emergency stop bar ensures operators´ safety in case of an emergency.

With its broad 500 mm working width, it facilitates convenient and rapid loading, effectively shredding all types of paper materials, including loose, stapled, bound or crumpled. It also accommodates small quantities of plastic materials like credit cards, CDs, and floppy disks. Meeting security level P-3 standards with a cutting width of 6 x 50 mm, it ensures data security. An auto-reverse function swiftly clears paper jams caused by overloading.

The shredded material is automatically compressed into compact bales once the baler reaches capacity. A "bale complete" indicator halts the cutting process, allowing the bale to be ejected using a push-button control. For added stability, each bale can be tied twice.

Standard features include an intelligent automatic oiler, enhancing operational efficiency and prolonging equipment lifespan.

Shredding material:

• Paper with staples and paper clips
• Crumpled paper
• CD / DVD / Blu-ray
• Plastic card
• Floppy disk

FEATURES

• The particles, measuring 6 x 50 mm, conform to security standard P-3 as per DIN 66399 (ISO/IEC 21964).
• Compatible with various paper materials, including loose, stapled, bound, or crumpled, and small quantities of plastic materials such as credit cards, CDs, and floppy disks.
• Efficiently processes 260-290 sheets of 80 g/m² paper with a working width of 500 mm, ensuring rapid and effective document processing.
• Ensures smooth operation with a high throughput of approx. 480 kg per hour.
• Comes equipped with a sturdy metal housing.
• The shredded material is compacted into bales to reduce its volume by up to 70%.
• Induction-hardened, nitrocarburised solid steel cutting cylinders/shafts guarantee durability and an extended service life.
• Features an intuitive touch display with programmable logic control (PLC).
• Includes emergency stop bar, emergency stop switch, and lockable main switch for added safety.
• Facilitates effortless document shredding with a high-capacity conveyor belt, automatic return, overload protection and an automatic oiler.

BALER FEATURES:

• Reduces scrap volume by up to 70%
• Bag or strap bales, depending on your needs
• Bales are ejected with the push of a button
• Baler has a separate opening for adding other materials for baling

SPECIFICATIONS

• Area of application: Industrial
• Cutting size paper (mm x mm): 6 x 50
• Cutting type paper: Cross cut
• Security level ISO/IEC 21964 (DIN 66399): P-3 / O-3 / T-31 / E-2
• Shredding material: Paper with staples and paper clips, Crumpled paper, CD / DVD / Blu-ray, Plastic card, Floppy disk
• Material cutting cylinders / shaft: Induction-hardened, nitrocarburized solid steel
• Waste disposal solution: Bale press
• Intake width (mm): 500
• Inlet/desk height (mm): 1.200
• Sheet capacity (80g/m²): up to 290
• Throughput: approx. 480 kg/h/h
• Cutting speed (80g/m²) mm/s: 240
• Continuous Running: yes
• Noise level (idle operation) dB(A): 61
• Nominal motor power (W): 7.500
• Motor protection device with thermal sensor: yes
• Power supply (V / Hz): 400 / 50
• Other voltages available: yes
• Product dimensions W x D x H (cm): 121 x 284 x 163
• Product weight (kg): 1.256
• Weight shredder (kg): 364
• Weight baler (kg): 550
• Control operation: Touch display
• Visual status indication for: All activities and issues are shown on display and information e.g. overall operation time, blockages
• Auto reverse: yes
• Internal conveyor belt: yes
• Dosage paddles: yes
• Overload protection: yes
• Safety features: Emergency stop bar, Transparent plastic curtain in feeding area
• Lockable master switch: yes
• Bin full sensor: yes
• Dust extractor: yes
• Expansion of the feed table: yes
• Castors: Baler
• Parking brakes: yes
• Material machine housing: Metal
• Certificates / Listings: CE, UKCA
• Bale press: yes
• Press force of baler (kN): 80
• Bale weight (kg): 60 - 80

BALER SPECIFICATIONS:

• Model#: 475904
• Hydraulic Press: 8 Ton
• Power Supply: 220V/60Hz
• Weight: 1,696 Lbs.

DEMO VIDEO

Intimus 16 50 SmartShred Industrial Paper Shredder
