Description

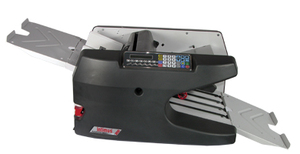

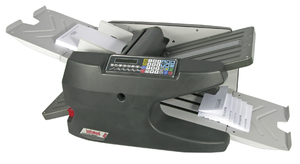

Martin Yale 2051 Smartfold Electric Paper Folding Machine

The Intimus SmartFold 2051 Paper Folder automatically feeds, folds, and collects a stack of documents; folded material emerges on conveyor belts, creating easy-to-handle fanned stacks. This Paper Foldinfg Machine Performs 7 pre-programmed fold types: letter, z-fold, half, double-parallel, gate, engineering (AKA short z-fold) and church fold and 10 custom folds. The 2051 paper folder has variable speeds that can be set from 3,000 to 15,000 sheets per hour of paper from 18lb bond to 90lb index. This Electric Automatic Paper Folder is ideal for schools, churches, offices, and print shops.

Need Parts for the 2051? We have them.
See Below. All Parts are in Stock

Use the link below if you need it to make sure you are ordering the correct part name and part number, or if you do not see the Part listed below on this page.

Martin Yale 2051 Smartfold Electric Paper Folding Machine Parts List and Exploding Diagram

FEATURES

Handles paper weight from 18-lb. bond to 90-lb. index

Variable speed ranges from 3,000 to 15,000 sheets per hour

Handles sheets sizes from 2-1/2" x 5-1/5" to 12" x 18"

Feed table capacity can hold up to 500 sheets of 20-lb. bond

High memory capacity with 7 pre-programmed fold types: letter, z-fold, half, double-parallel, gate, engineering (AKA short z-fold) and church fold and 10 custom folds

Capable of feeding a wide range of paper weights WITHOUT having to adjust feed system which saves time between folding jobs

Diagnostics mode for quick and easy trouble shooting and setup with 7 sensors

Fully enclosed fold tables(quieter operation and improved operator safety)

2-line X 20 character LCD display provides operator with visual feedback prompting

5 pre-programmed paper sizes: 8 1/2" x 11", 8 1/2" x 14", 11" x 17", A3 and A4

90 day warranty when purchased without F.A.I.M. (Factory authorized installation and maintenance). 1 year warranty when purchased with F.A.I.M.

Dimensions (L x W x H).... 22" x 43" x 17"

Shipping Weight ....104 lbs

Additional Information:

Min. Paper Size	2.5" x 5.2"
Max. Paper Size	12" x 18"
Paper Weights	18 lb. bond - 90 lb. index
Speed	3,000 - 15,000 sheets per hour
Fold Types	Letter, Half, Z-Fold, Double-Parallel, Engineering, Gate and Church Fold
Feed Table Capacity	500 sheets
Width (in)	22.2"
Depth (in)	43.2"
Height (in)	17.8"
Weight (lb)	102 lb.

Spare/Replacement Part for Martin Yale 2051 Smartfold Electric Paper Folder and Paper Folding Machine

Martin Yale Replacement Part WRA2051249 FEED WHEEL & SHAFT ASSY

Martin Yale Replacement Part V-O2051254 MOLDED RETARDER BRACKET

Martin Yale Replacement Part M-O1601083 MAIN BOARD REPL

Martin Yale Replacement Part WRA2051144 COMPLETE HOME SENSOR ASSY

Martin Yale Replacement Part WRA2051SP Survival Kit

Martin Yale Replacement Part WRA2051SP2 Survival Kit 1812 (S/N 1241 & up) and 2051 (S/N 1500 & up)

Martin Yale Replacement Part V-O2051254 Retarder

Martin Yale Replacement Part WRA2051SP3 Machines Over Serial Number 39568.01122.M38 or if Retro Kit was Installed

Martin Yale Replacement Part M-S024013 Conveyor Belt (order 4)

Martin Yale Replacement Part W-O2051369 Feed Wheel for Electric Paper Folding Machine 2051, 2045 and 1812

Martin Yale Replacement Part WRA2051143 Main Board for Auto Paper Folder - 2051

Martin Yale Replacement Part WRA2051144 Complete Home Sensor Assy for Auto Paper Folder - 2045 and 2051

MARTIN YALE PART # W-A2051085 clutch

MARTIN YALE PART # W-WRA2051543 Logic Board for Serial Number Above 39586.01120.M39

Martin Yale Replacement Part WRA2051510 Replacement Clutch Retro Kit for 2051 and 2045
