Description
LAWSON L-14 #10 - 24 X 3/8" FLATHEAD MACHINE SCREW FOR DRILL HEAD

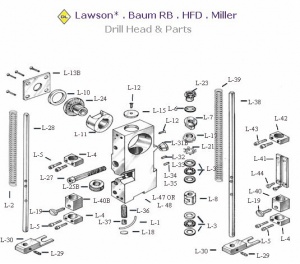

Listed below are other parts for Lawson Drill Heads
L-13B Thrust Plate (Qty Needed 1)
L-10 Thrust Washer (Qty Needed 1)
L-24 Bevel Gear (Qty Needed 1)
L-28 Pressure Foot Rod Short (Qty Needed 1)
L-11 Bushing (Qty Needed 1)
L-4 Pressure Foot Block (Qty Needed 2)
L-5 Screw (Qty Needed 4)
L-27B Gib Screw (Qty Needed 1)
L-2 Pressure Foot Spring Short (Qty Needed 1)
L-30 Pressure Foot (Qty Needed 1)
L-29 Screw (Qty Needed 1)
L-5 Screw (Qty Needed 4)
L-19 Thumb screw (Qty Needed 1)
L-4 Pressure foot Block (Qty Needed 2)
L-40B Pressure Foot Stop (Qty Needed 1)
L-25B Adjusting Knob (Qty Needed 1)
L-37 Set Screw (Qty Needed 1)
L-18 Seal Plug (Qty Needed 1)
L-1 Grease Wick (Qty Needed 1)
L-36 Set Screw (Qty Needed 1)
L-47 Main Housing (Qty Needed 1)
L-33 Screw (Qty Needed 1)
L-32 Screw (Qty Needed 1)
L-31 Brass Gib (Qty Needed 1)
L-12 Screw (Qty Needed 2)
L-15 Flat Plug (Qty Needed 1)
L-12 Screw (Qty Needed 2)
L-23 Pinion Gear (Qty Needed 1)
L-6 Thrust Washer (Qty Needed 1)
L-7 Top Bronze Bushing (Qty Needed 1)
L-17 Locknut (Qty Needed 1)
L-21 Loking Washer (Qty Needed 1)
L-3 Thrust Bearing (Qty Needed 2)
L-8 Adjusting Sleeve (Qty Needed 1)
L-3 Thrust Bearing (Qty Needed 2)
L-30 Pressure Foot (Qty Needed 1)
L-29 Screw (Qty Needed 1)
L-5 Screw (Qty Needed 2)
L-4 Pressure Foot Block (Qty Needed 1)
L-19 Thumb Screw (Qty Needed 1)
L-40 Pressure Foot with Cut out (Qty Needed 1)
L-44 Screw (Qty Needed 2)
L-41 Extension Plate (Qty Needed 1)
L-43 Screw (Qty Needed 2)
L-42 Upper Block (Qty Needed 1)
L-38 Pressure Foot Rod Long (Qty Needed 1)
L-39 Pressure Foot Spring Long (Qty Needed 1)
