Description

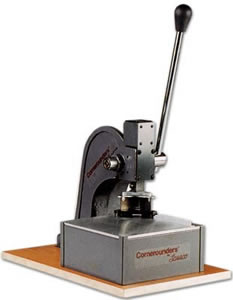

Lassco CR-60 Corner Cutter Corner Rounder for Sign Industry and Metal Applications (CR-60) With 1-1/2 Inch Radius Table Assembly

The Lassco Model CR 60 is designed especially for the sign industry. It features a one ton press capacity as well as interchangeable tables, which allow for quick changes of radii. CR-60 Corner Cutter provides the user with a manual shear action Cornerounder for larger radius applications.

There are four (4) radii or table sizes available - 1/2", 3/4", 1", and 1-1/2" - all with a 5/64" (.080) cutting capacity (thickness). The Lassco CR 60 is designed to trim light-weight metals, such as aluminum with a maximum cutting capacity of .080" of half-hard Aluminum sheets, and .034 of Mild Steel.

To operate this corner rounder, simply pull down on the lever, which causes the cutting head to descend and shear off the edges of your materials.

FEATURES

Designed especially for the sign industry

Features a one ton press capacity

Interchangeable tables, which allow for quick changes of radii

Shear capacity of up to .080 (5/64 Inch) half hard aluminum

SPECIFICATIONS

Table size: 9" x 9"

Dimensions: 12 x 9 inches

Actual weight: 38 lbs.

Shipping Dimensions: 16 x 15 x 23 Inches:

Shipping weight: 46 lbs.

Ships via: UPS

$3.00 Handling Charge
