Lassco Spinnet EBM-2.1 One Spindle E-Z Glide Table-Top Bench Model 2 Inch Paper Drill

Quantity:

MSRP:
$2,410.00

Price You Pay:

$1,999.99

Estimated Oversize Handling Fee :

$95.00
Yes! This Item Is In Stock!
Availability
Online
In Store
Same Day

Description

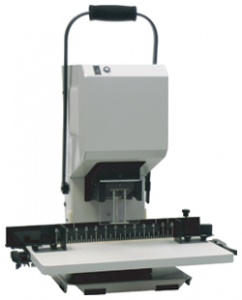

Lassco EBM-2.1 One Spindle E-Z Glide Table-Top Bench Model 2 Inch Drilling Capacity Paper Drill



The Lassco EBM-2.1 Table Top Paper Drill or Bench Paper Drill is the Lassco EBM-2 improved with the E-Z Glide table system that uses pattern bars which allows for quick movement from hole to hole for multi-hole drilling. The bench model, table top design makes it easy to place the unit almost anywhere in your workspace. A release lever is positioned on each side of the traversing table for right or left-handed operation.

FEATURES

  • An adjustable side stops allow you to trap your product to prevent misalignment!
  • Easy to set up and use with minimal installation necessary.

    SPECIFICATIONS

  • Table size: 18 x 12 Inches
  • Base Footprint: 12 x 13 1/2 Inches
  • Table Height: 3 1/2 Inches
  • Maximum Drilling Capacity: 2 Inches
  • Motor: 1/4 Horse Power, 115 Volts
  • Actual Weight: 66 lbs.
  • Shipping Weight: 104 lbs.
  • Shipping dimensions: 35 x 25 x 23 inches
  • Ships via: LTL Truck

    Included with the EMB-2.1 Table -Top Paper Drill are:

  • A Sharpening Stone
  • A Chip Clearer
  • A 1 ounce Bottle of Spin-Eze Drill Bit Lubricant
  • A 5/16" Diameter Paper Drill Bit, and
  • Four patterns for multi-hole drilling. The sizes are as follows:

    Blank (customizable)
    3 holes, 2-3/4" apart center to center
    3 holes, 3-1/2" apart center to center
    2 holes, 2-3/4" apart center to center
    3 holes, 4-1/4" apart center to center

    ACCESSORIES
  • Drill Strips
  • Style A - 2 Inch capacity Hollow Paper Drill Bits

    Some Pointers and Tips on Drilling: USE A SHARP DRILL BIT AT ALL TIMES. Generally, a Drill Bit can be used for approximately four (4) hours of use before it needs to be sharpened. Apply light pressure when sharpening. Too much pressure may cause flaring of the tip. (Once a Drill Bit has a flared tip, it becomes defective.) Three types of Drill Sharpeners are available. We recommend you purchase a sharpener and also an extra Drill Bit for each size that you use to insure you can finish a job in the event a Drill Bit breaks. USE A SHARPENING STONE to debur the outside cutting edge of the your Drill Bits for better performance. LUBRICATE DRILL BITS OCCASSIONALLY - use Drill-Ease or Spin-Eze. While the drill is running, simply touch the Drill-Ease stick to the Drill Bit or brush on the Spin-Eze. This will allow for a smoother cut. USE DRILL BLOCKS. When drilling, a Drill Bit must stop slightly above the drill block when lowered. Replace worn out drill blocks regularly to ensure proper drilling.

  • Specifications

    Manufacturer Part #: EBM21
    Dimensions (LxWxH): 13.00in. x 24.00in. x 26.00in.
    Origin: United States of America

    Reviews

    Reviewer:
    Pete Duffy
    Rating:
    4/5
    OEMS Verified Purchase (What's This?)
    Review:
    Nice machine, performs as advertised and works well for my vehicle Tech Data library. It didn't however, come with the sharpening stone listed on this page and the stone wasn't on the list of accessories packed with the machine from the manufacture.
