Description

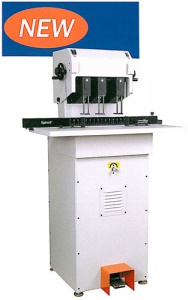

Lassco Spinnit FMMH-2, Two Spindle, Movable Heads, 2 Inch Drilling Capacity Fully Automatic Hydraulic Paper Drill -.

Let our Fully Automatic Hydraulic Paper Drill help you do the work! All you have to do is set the guides to your specifications, load your paper, and gently press the foot pedal down to make smooth, professional holes in your paper. This professional paper drill does not require any leg pressure/movement on your part and is highly recommended for customers that want the most comfortable operation possible.

The Lassco Spinnit FMMH-2.1 fully automatic hydraulic 2 Inch Two Spindle, Moveable Heads Paper Drill features a powerful hydraulic lift with foot pedal activation, 2'' drilling capacity, sturdy adjustable back-gauge, easy to adjust movable head design, adjustable hydraulic lift speed, and built for ease in operation and maximum production performance.
The Lassco FMMH-2.1 Floor Model Paper Drill includes:

1. MS-1 Drill Sharpener
2. Sharpening Stone
3. Spin-EZE Drill Bit Lubricant
4. Chip Clearer
5. Three (3) 5/16'' Style A Drill Bits

FEATURES

• 2 INCH Drilling Capacity
• Powerful hydraulic lift with foot pedal activation
• Sturdy adjustable back-gauge
• Easy to adjust moveable head design
• Adjustable hydraulic lift speed
• Built for ease in operation and maximum production performance
• Includes MS-1 drill sharpener, Spin-Eze drill bit lubricant, chip clearer, set of 5/16 Inch drill bits

SPECIFICATIONS

Lift Type :	Hydraulic
Number of Drill Heads:	2 Drill Heads
Drill Head Type :	Moveable
Table Size:	15 x 32 INCHES
Base Footprint:	18 x 22 INCHES
Table Height:	36 INCHES
Overall Height:	54 INCHES
Overall Width:	32 INCHES
Overall Depth:	31 INCHES
Max Drilling Capacity	: 2-1/2 INCHES
Max Drilling Capacity:	2-1/2 INCHES
Spindle Motor:	3/4 HP, 115 Volts
Hydraulic Motor:	1/2 HP, 115 Volts
Actual Weight:	345 lbs
Shipping Weight:	460 lbs
Shipping Dimensions:	48 x 40 x 63 INCHES
