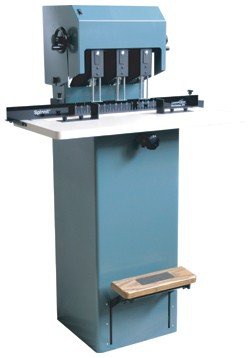

Lassco FMMS-3 Three (3) Spindle, Fixed Heads Manual Lift 2 Inch Capacity Paper Drill

Quantity:

MSRP:
$7,565.00

Price You Pay:

$5,299.99

Estimated Oversize Handling Fee :

$124.99
Yes! This Item Is In Stock!
Availability
Online
In Store
Same Day

Description

Lassco FMMS-3 Three Spindle, Fixed Heads Manual Lift 2 Inch Drill Capacity Paper Drill



The Lassco Spinnit FMMS-3 Paper Drill is identical to the FMM-3 except it has Stationary Drill Heads set for drilling three holes 4 1/4" center-to-center.

Features

  • It has a 2" drilling capacity
  • Easy to adjust moveable head design
  • Rugged mechanical lift table which smoothly traverses in either direction
  • Built for ease in operation and maximum production performance

    All floor model drills include:

  • MS-1 drill sharpener
  • Spin-Eze drill bit lubricant
  • Set of 5/16 inch drill bits
  • Sharpening stone
  • Chip clearer

    Specifications

  • Table size: 15" x 32"
  • Base footprint: 15" x 15"
  • Table heigh: 35-1/2"
  • Overall height: 52"
  • Overall width: 32"
  • Overall depth: 26"
  • Max drilling capacity: 2"
  • Motor: 3/4 HP, 115 volts
  • Actual weight: 178 lbs.
  • Shipping weight: 275 lbs
  • Shipping dimensions: 48" x 40" x 60"
  • Ships via: LTL Truck

    Some Pointers and Tips on Drilling: USE A SHARP DRILL BIT AT ALL TIMES. Generally, a drill bit can be used for approximately four (4) hours of use before it needs to be sharpened. Apply light pressure when sharpening. Too much pressure may cause flaring of the tip which renders the bit unusable. Sharpening stones are also recommended to debur the outside cutting edge of the your drill bits for better performance. Use of Drill-Ease or Spin-Eze lubricant is required. Finally, purchase drill blocks to stop the drill bit after it penetrates the drilled material.

    Accessories
  • Drill strips
  • Style A 2" hollow drill bits

  • Specifications

    Manufacturer Part #: FMMS3
    Dimensions (LxWxH): 26.00in. x 32.00in. x 52.00in.
    Origin: United States of America
