Description

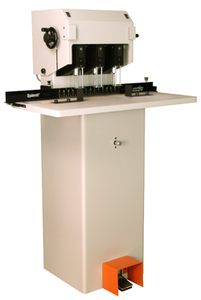

Lassco Spinnit FMMH-3 Three Spindle, Moveable Heads, 2 inch Drill Capacity, Fully Automatic Hydraulic Paper Drill

The Lassco Spinnit FMMH-3 Paper Drill is a Fully Automatic Hydraulic Powered Three Spindle Paper Drill with Moveable Heads built for ease in operation and maximum production performance. An Electric Motor allows continuous paper drilling and - a Powerful Hydraulic Lift for the Drill Table - with Foot Pedal Activation that reduces Operator Leg Fatigue and frees the hands of the Operator to position the material being drilled. The Hydraulic Lift Speed is adjustable. The Drill Heads on this Floor Model Paper Drill are moveable.

This FMMH-3 Paper Drill has up to a 2 inch drilling capacity and its Three Drill Heads have an easy to adjust moveable design. The Spinnit FMMH-3 Paper Drill is a versatile, compact and affordable 3-Spindle Paper Drill.

Specifications :

Number of Spindles: 3
Maximum Drilling Capacity: 2 Inches
Distance Between Spindles: 2 " 5 Inches
Horsepower Spindle Motor: .75 HP
Horsepower Hydraulic Motor: .5 HP
Voltage: 115 Volts
Table Size: 15 x 32 Inches
Maximum Throat Depth (with Back Gauge): 1-3/4 Inches
Table Travel: 14 Inches
Table Height: 35-1/2 Inches
Base Footprint: 154 x 15 Inches
Overall Height: 52 Inches
Overall Width: 32 Inches
Overall Depth: 26 Inches
Shipping Dimensions: 48 x 40 x 60 Inches
Net Weight: 232 lbs.
Shipping Weight: 335 lbs.
Ships via: LTL Truck

Shipping and Handling additional


All Lassco Floor Model Paper Drills include :

MS-1 Drill Sharpener

Sharpening Stone

Spin-Eze Drill Bit Lubricant

Ship Clearer

Set of Three 5/16 Inch Diameter Style A Drill Bits


Some Pointers and Tips on Drilling: USE A SHARP PAPER DRILL BIT AT ALL TIMES. Generally, a Paper Drill Bit can be used for approximately four (4) hours of use before it needs to be sharpened. Apply light pressure when sharpening. Too much pressure may cause flaring of the tip which renders the Paper Drill Bit unusable. Sharpening Stones are also recommended to debur the outside cutting edge of the Paper Drill Bits for better performance. Use of Drill-Ease or Spin-Eze lubricant is required. Finally, purchase Paper Drill Blocks to stop the Drill Bit after it penetrates the drilled material.
