Lassco Spinnit FM-2 One (1) Spindle E-Z Glide Table Manual Foot Lift Electric 2 Inch Paper Drill



Price You Pay:


Estimated Oversize Handling Fee :

Yes! This Item Is In Stock!
In Store
Same Day

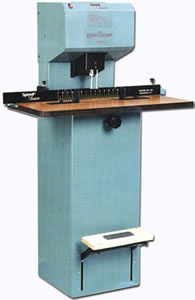

Lassco Spinnit FM-2 One (1) Spindle, E-Z Glide Manual Lift 2 Inch Drill Capacity Paper Drill

The Lassco Spinnit FM-2 Paper Drill is a single spindle Paper Drill that provides maximum production at an affordable price. It has a 2 inch drilling capacity and comes with a mechanical lift table that traverses right and left. Foot pedal control allows for hands to be free. The FM-2 is the lowest cost floor model Paper Drill on the market. It requires low maintenance and operates efficiently. The Lassco Spinnit FM-2 Paper Drill is also available in pneumatic powered version (Model FMP-2).

  • E-Z Glide table system uses pattern bars which allows for quick movement from hole to hole for multi-hole drilling, operated with a release lever positioned on each side of the table to provide either right or left handed operation.
  • Included with the FM-2 are 4 patterns for multi-hole drilling. The sizes are:
    3 holes, 2-3/4 inches apart center to center
    3 holes, 3-1/2 inches apart center to center
    2 holes, 2-3/4 Inches apart center to center
    3 holes, 4-1/4 Inches apart center to center
  • Single spindle drill
  • 2 inch drilling capacity
  • Low maintenance and efficient operation
  • Lowest cost floor model drill on the market.

    All floor model drills include:

  • MS-1 drill sharpener
  • Spin-Eze drill bit lubricant
  • Set of 5/16 inch drill bits
  • Sharpening stone
  • Chip clearer


  • Table size: 15" x 32"
  • Base footprint: 15" x 15"
  • Table height: 35-1/2"
  • Overall height: 54"
  • Overall width: 32"
  • Overall depth: 26"
  • Motor: 1/4 HP, 115 Volts
  • Actual weight: 150 lbs

    Shipping Infomation
  • Dimensions: 48 L. x 40 W. x 60 H. Inches.
  • Weight: 260 lbs.
  • Ships on a Pallet by Truck.

    Some Pointers and Tips on Drilling: USE A SHARP DRILL BIT AT ALL TIMES. Generally, a drill bit can be used for approximately four (4) hours of use before it needs to be sharpened. Apply light pressure when sharpening. Too much pressure may cause flaring of the tip which renders the bit unusable. Use of Drill-Ease or Spin-Eze lubricant is required. Finally, purchase drill blocks to stop the drill bit after it penetrates the drilled material.

  • Specifications

    Manufacturer Part #: FM2
    Dimensions (LxWxH): 26.00in. x 32.00in. x 54.00in.
    Origin: United States of America
