Description

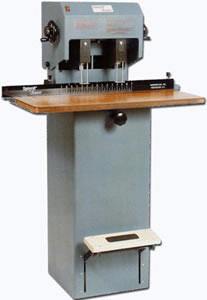

Lassco Spinnit FMM-2 Two Spindle, Moveable Heads, Manual Lift 2 Inch Drill Capacity Paper Drill

The Lassco Spinnit FMM-2 Paper Drill is a two spindle Paper Drill that offers up to a 2-inch deep drilling capacity, easy movable drilling heads, and a rugged mechanical lift table that smoothly traverses in either direction. The Lassco Spinnit FMM-2 Paper Drill is ideal for hospitals, law and accounting offices. It can drill two holes in files and records that use two hole fasteners. The distance between spindles is adjustable or moveable 2-3/8" - 10" on center, or center to center. There is a built in foot pedal for hands free operation. Built for ease in operation and maximum production performance. There is also a pneumatic power version of this model available (Model FMMP-2).

Features

2 " capacity two hole drilling

Moveable heads and traversing table allow for extreme versatility

Manual lift with a foot pedal activation for reduced cost

All floor model drills include:

MS-1 drill sharpener

Spin-Eze drill bit lubricant

Set of 5/16 inch drill bits

Sharpening stone

Chip clearer

Specifications

Table size: 15" x 32"

Base footprint: 15" x 15"

Table height: 35-1/2"

Overall height: 52"

Overall width: 32"

Overall depth: 26"

Maximum drilling capacity: 2"

Motor: 3/4 HP, 115 volts

Actual weight: 187 lbs.

Shipping weight: 284 lbs

Shipping dimensions: 48" x 40" x 60"

Ships via: LTL Truck

Some Pointers and Tips on Drilling: USE A SHARP DRILL BIT AT ALL TIMES. Generally, a drill bit can be used for approximately four (4) hours of use before it needs to be sharpened. Apply light pressure when sharpening. Too much pressure may cause flaring of the tip which renders the bit unusable. Drill Sharpeners are available and are recommended with purchase along with an extra drill bit. Sharpening stones are also recommended to debur the outside cutting edge of the your drill bits for better performance. Use of Drill-Ease or Spin-Eze lubricant is required. Finally, purchase drill blocks to stop the drill bit after it penetrates the drilled material.

Accessories

Drill strips

Style A 2" hollow drill bits
