Lassco Spinnit FMMP-3 Three (3) Spindle Pneumatic Lift Paper Drill

Quantity:

MSRP:
$5,595.00

Price You Pay:

$5,035.50
Yes! This Item Is In Stock!
Availability
Online
In Store
Same Day

Description

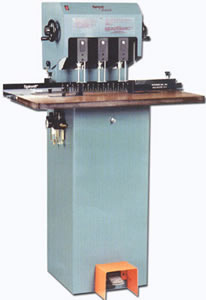

Lassco Spinnit FMMP-3 Pneumatic Lift Paper Drill



The Lassco Spinnit FMMP-3 Paper Drill is a Pneumatic powered Paper Drill that provides continuous drilling via a foot pedal control.

Features

  • The FMMP-3 Pneumatic Lift Paper Drill is the most versatile, compact, and affordable fully automatic 3 spindle drill on the market today.
  • Adjustable pneumatic lift with foot pedal activation.
  • 2 inch drilling capacity.
  • Powered by your in-house compressor or available with our select compact Air Compressor (compressor sold separately).

    All floor model drills include:

  • MS-1 drill sharpener
  • Spin-Eze drill bit lubricant
  • Set of 5/16 inch drill bits
  • Sharpening stone
  • Chip clearer

    Specifications

  • Table size: 15" x 32"
  • Base Footprint: 15" x 15"
  • Table height: 35 1/2"
  • Overall height: 52"
  • Overall width: 32"
  • Overall depth: 26"
  • Motor: 3/4 HP, 115 Volts
    Recommended pneumatic requirements:
  • 3.1 CFM at 100 PSI (machine operates at 80 PSI)

  • Shipping dimensions: 48" x 40" x 60"
  • Actual weight: 175 lbs.
  • Shipping weight: 272 lbs.
  • Ships via: LTL Truck

    Accessories

  • Drill strips
  • Style A 2" capacity hollow drill bits

    Some Pointers and Tips on Drilling: USE A SHARP PAPER DRILL BIT AT ALL TIMES. Generally, a Paper Drill Bit can be used for approximately four (4) hours of use before it needs to be sharpened. Apply light pressure when sharpening. Too much pressure may cause flaring of the tip which renders the Paper Drill Bit unusable. Sharpening Stones are also recommended to debur the outside cutting edge of the your Paper Drill Bits for better performance. Use of Drill-Ease or Spin-Eze lubricant is required. Finally, purchase Paper Drill Blocks to stop the Drill Bit after it penetrates the drilled material.

  • Specifications

    Manufacturer Part #: FMMP3
    Dimensions (LxWxH): 15.00in. x 32.00in. x 52.00in.
