Description

M.C. Mieth 36 Peg Hole or Delta Shaped Hole Large Die Punch

In the Attachment Tab above is a sheet you can look at and print out showing the diameters of holes you can punch if you print the sheet out - actual size on your printer. The sheet will help you to choose the correct size of the hole diameter you want. If you order the wrong size and you need to exchange the punch, there will be a charge of $20 + shipping or up to 25% of your order cost.

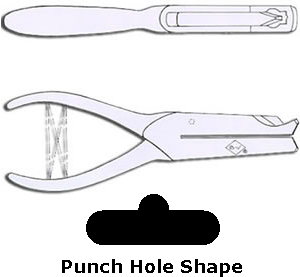

This item page is to order the Mieth Punch Model # 36 Peg Hole or Delta Shaped Hole Large Die Punch. Use the Drop Down menu below the price on the upper right side of this page to select the Peg Hole or Delta Shaped Hole you want.

The Mieth 36 Hole Punch is designed among other purposes for retail display packaging. For retail display packaging you can choose between a Peg Hole or Delta Shape Hole.

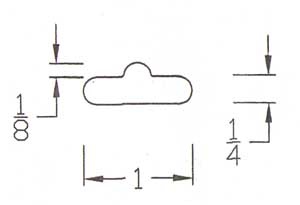

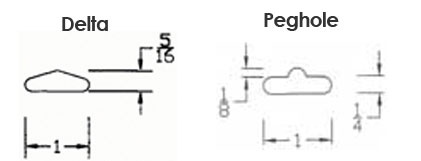

The Peg Hole size is one inch wide and one quarter inch high with a 1/8 inch bubble in the middle and a reach of one quarter inch from the edge.

The Delta Shaped Hole is one inch wide and 5/16 of an inch at the apex.

Standard Reach is 1/4 Inch from the edge (best for punching thicker materials) . Note: The 36 can be special ordered with 1-1/2 inch reach.

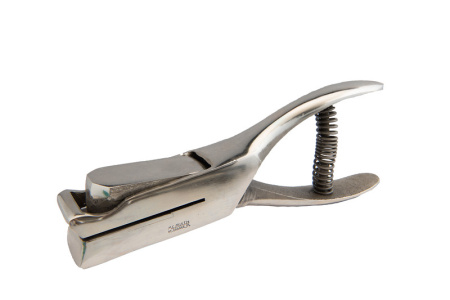

The two piece construction is forged from steel for many years of durable use. These Mieth Heavy Duty Hole Punches are designed for punching Large holes in film and other materials.

You can put your own Design on most of our Punches. CALL FOR SPECIAL PRICING.

Punching Specifications for M.C. Mieth Model #36 Peg Hole or Delta Shaped Hole Punch

Round Holes: 1/2", 9/16", 5/8", 3/4" or 7/8"
Click to Order Peg Hole or Delta Shaped Hole Large Die Punch

Peg Hole or Delta Shaped Hole Large Die Punch

Security Chains, Leather Holsters, Finger Rings, Reservoirs to Capture Punch Chits, and Holes in the Handle of Punches for attachments are available on all M.C. Mieth punches. To order you can use the Accessories Tab above.

Rectangles, Squares, Ovals: up to 1"

1/2 Frame & Oval Pendant Dies

Retail Hang Hole Punch to display merchandise cuts 1/4" from edge with 7/64" Slot ( Opening ). Specifiy Delta or Peghole

REACH : 1" to 1/2"

LENGTH : 7"

NET WEIGHT : 1 lbs.

SHIPPING WEIGHT : 2 lbs

Please Specify which DIE Format is desired, whether it be a Figure or a Letter, Number Combination

M.C. Mieth follows the strictest rules of highest quality and finish. For every marking application, whether for identification or cancelling, you can Punch Mark it faster with non-removable, easily read Punched Symbols, Letters or Figures. The quick operation and mistake proof results of Punch Marking is utilized in hundreds of Industries on the production line and in the office. In addition to punching paper and cards, punches can be made for light metal, plastic, rubber sheeting, cloth or film negatives.

Six Reasons why M.C. Mieth Handheld Hole Punches Mark Faster and Easier:

Finish: Heavy Nickel Plate Buffed to a High Luster.

Clear Cutting Hardened Steel Die Made with Extreme Accuracy.

Easy Action Release Spring.

Malleable Iron Casting.

Hard Steel Pivot Pin( Lubricated for the Life of the Hole Punch)

All Finger Rings are welded to the handle(Finger Rings come with some Hole Punches and are Optional on others.)

Warranty
M. C. Mieth punch products have a one year limited warranty against any defects in material or workmanship. Not guaranteed against wear. Any alterations to product voids warranty.Unit must be returned to factory if service is required..
