Description

M. C. Mieth 464 2 Inch Reach 3 Character Number and/or Letter Hole Punch - 1/8" Character Size.

In the Attachment Tab above is a sheet you can look at and print out showing the diameters of holes you can punch if you print the sheet out - actual size on your printer. The sheet will help you to choose the correct size of the hole diameter you want. If you order the wrong size and you need to exchange the punch, there will be a charge of $20 + shipping or up to 25% of your order cost.

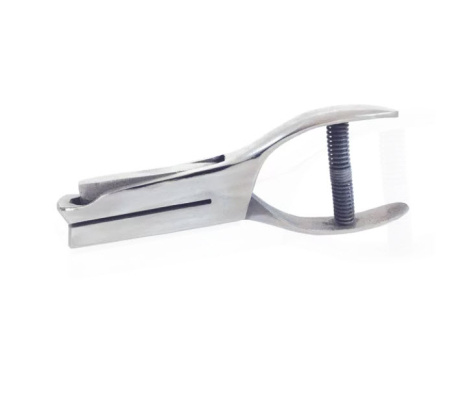

The Meith 464 is a sturdy tool used in mills and canneries for punching piecework and time cards. This 464 M.C. Mieth Handheld Hole Punch has a 2 inch reach or throat. It can punch up to two inches from edge of card,

The 464 has wide range of punching capabilities as explained below. It can be fitted to punch 3 Characters which can be letters and/or numbers as on this item page - and also round holes or shapes/characters.

Indicate the numbers and/or letters you want in the Special Instructions section of the order process.

You can put your own Design on most of our Punches. CALL FOR SPECIAL PRICING.

Punching Specifications for M.C. Mieth Model # 464

Round Holes: 1/8", 3/16", 1/4" 5/16" or 3/8"
Click to Order Round Hole Punch

Single figure character 0 to 9 or letter characters A to Z- 1/8", 3/16" or 1/4" size.
Click to Order Single Letter or Number Punch

2 character combination of letters as "VC", "BP" etc or Numbers as "10" to "99" etc - 1/8" or 3/16" size
Click to Order 2 Character combination of Letter or Number Punch

3 character combination of letters as " AMB", "SRY" etc or Numbers as "100", "999" etc - 1/8" size only

Full selection custom designs
Click to Order Single Number or Letter Punch

Security Chains, Leather Holsters, Finger Rings, Reservoirs to Capture Punch Chits, and Holes in the Handle of Punches for attachments are available on all M.C. Mieth punches. To order you can use the Accessories Tab above.

REACH: 2"

LENGTH: 4-7/8"

Net Weight : 1 lbs.

Shipping Weight : 2 lbs

All Punches with 2 or 3 characters, the characters are placed on the long axis of the Punch itself. To do your punching , Come in from the side of the material with the Punch.

The M.C. Mieth Line of Handheld Hole Punchers is constantly being studied for improvement in every way possible. M.C. Mieth follows the strictest rules of highest quality and finish. For every marking application, whether for identification or cancelling, you can Punch Mark it faster with non-removable, easily read Punched Symbols, Letters or Figures. The quick operation and mistake proof results of Punch Marking is utilized in hundreds of Industries on the production line and in the office. In addition to punching paper and cards, punches can be made for light metal, plastic, rubber sheeting, cloth or film negatives.

Six Reasons why M.C. Mieth Handheld Hole Punches Mark Faster and Easier:

Finish: Heavy Nickel Plate Buffed to a High Luster.

Clear Cutting Hardened Steel Die Made with Extreme Accuracy.

Easy Action Release Spring.

Malleable Iron Casting.

Hard Steel Pivot Pin( Lubricated for the Life of the Hole Punch)

All Finger Rings are welded to the handle(Finger Rings come with some Hole Punches and are Optional on others.)

Warranty
M. C. Mieth punch products have a one year limited warranty against any defects in material or workmanship. Not guaranteed against wear. Any alterations to product voids warranty.Unit must be returned to factory if service is required..
