Description

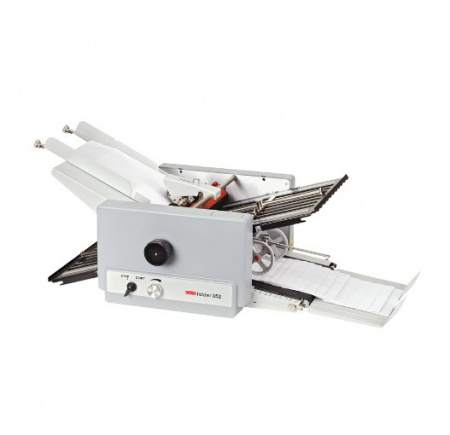

MBM 352F High Volume Professional Tabletop Paper Folder (FO0624)

Versatile, high-speed friction folder that sets up easily for standard and custom folds.

The dual roller friction feed system accepts a wide variety of stocks. Adjusts in seconds for standard and custom folds. Variable speed control. Powered exit conveyor. Sheet separation from the top of the fanned stack. Polyurethane foam rollers eliminate the need for fold roller pressure settings. Heavy-duty, non-flexing side frames. Needle bearings for high-speed production. Optional extended delivery system, cross fold for right-angle folding, and slitting, scoring, and perforating attachments.

Features of the MBM 352F Paper Folder

• Feed Tray Capacity: Up to 300 sheets
• Fold Types: Half Fold, Letter Fold (Tri), Z Fold, Double Parallel Fold, Engineering Fold, Gate Fold
• Accepted Paper Sizes: 2 Inch x 2.75 Inch to 14 Inch x 21.25 Inch
• Accepted Paper Weights: 13 to 110 lbs.
• Feed Type: Friction-fed
• Fold Adjustment: Manual fold adjustment

Features of the MBM 352F Paper Folder

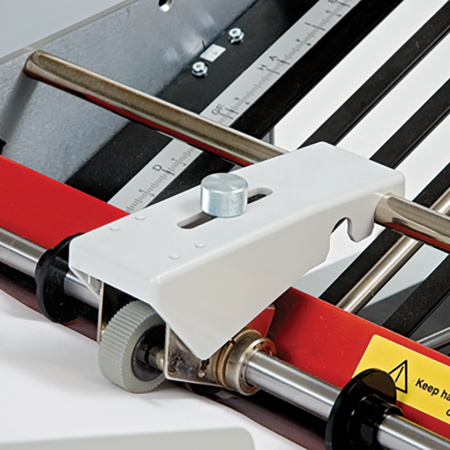

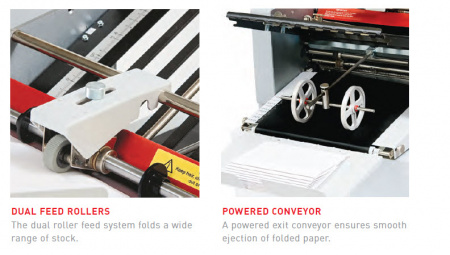

• Dual roller friction feed system folds a variety of stocks, including carbonless sheets.
• Adjusts in seconds for standard and custom folds.
• Variable speed control.

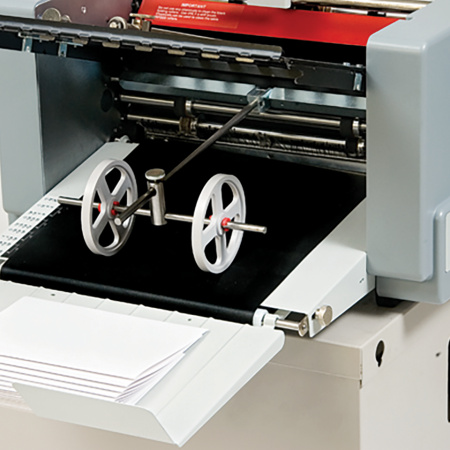

• Powered exit conveyor.
• Sheet separation from the top of the fanned stack.
• Polyurethane foam rollers eliminate the need for fold roller pressure settings.
• Heavy-duty, non-flexing side frames.
• Needle bearings for high-speed production.
• Optional extended delivery system, cross fold for right-angle folding, and slitting, scoring, and perforating attachments.
• UL and C UL approved.

Fold Types for the MBM 352F Folder

There are seven different fold types available for the 352F: (1) Letter fold (Tri-fold, C-fold), (2) Half-fold (Single fold), (3) Z-fold (Accordion, Zig Zag), (4) Double-Parallel, (5) Gate (Open Gate, Brochure), and (6) Engineering (Short Z, Fold Out, Half Accordion).



The MBM 352F is a heavy-duty paper folder designed for production environments. With non-flexing side frames and polyurethane foam rollers, it is very durable. This paper folder is beneficial if you need to conquer more complex folding jobs.

SPECIFICATIONS

• Manufacturer Name: MBM
• Model #: 352F
• Feed Type: Friction-fed
• Fold Adjustment Setting: Manual fold adjustment
• Feed Tray Capacity: Up to 300
• Fold Speed: 22,000 sheets/hour
• Fold Types: Half Fold, Letter Fold (Tri), Z Fold, Double Parallel Fold, Engineering Fold, Gate Fold
• Pre-programmed Standard Folds: 6
• Variable Speed: Yes
• Accepted Paper Sizes: 2 Inch x 2 3/4 Inch to 14 Inch x 21 1/4 Inch
• Accepted Paper Weights: 13 to 110 lbs.
• Weight: 105 lbs.
• Height: 14 1/2 Inch
• Width: 41 3/4 Inch
• Depth: 22 1/4 Inch
• Voltage: 115 Volts; other voltages available
• Shipping Weight: 105 lbs.
• Shipping Length: 22 inches
• Shipping Width: 28 inches
• Shipping Height: 27 inches

DEMO VIDEO

Accessories:

• AC0626: Silencing covers
• AC0630: Slitter
• AC0631: Scorer, narrow
• AC0632: Scorer, medium
• AC0633: Scorer, broad
• AC0646: Extended delivery
• AC0690: Standard perforator, short
• AC0691: Standard perforator, medium
• AC0692: Blade perforator, short
• AC0693: Blade perforator, medium
• AC0694: Blade perforator, long

Characteristics

• Versatile, high-speed friction folder that sets up easily for standard and custom folds
• Dual roller friction feed system accepts a wide variety of stocks
• Adjusts in seconds for standard and custom folds
• Variable speed control
• Powered exit conveyor
• Sheet separation from the top of the fanned stack
• Polyurethane foam rollers eliminate the need for fold roller pressure settings
• Heavy-duty, non-flexing side frames
• Needle bearings for high-speed production
• Optional extended delivery system, cross-fold for right-angle folding, and slitting, scoring, and perforating attachments available
• UL and C UL approved

Warranty

• 1-year limited warranty, excluding wearables
