Description

MBM Sprint 5000 Advanced Bookletmaker (BO0845)

The MBM Sprint 5000 is a highly productive bookletmaker designed for mid-volume demands. When connected to other finishing machines, it is capable of on-line corner, side, and saddle stapling to produce a variety of professional looking documents. The Sprint 5000 has a 10 sheet on-line capacity and a 22 sheet off-line capacity for making 88 page booklets. The 5,000 staple cartridge makes reloading infrequent for increased efficiency. Its bypass feature allows the user to skip fold rollers for side or corner stapling. It has a variable speed of up to 1,500 booklets per hour. Electronically links to the Maxxum 10 and other popular collators to efficiently produce booklets in a variety of stapling configurations.

FEATURES

• Sheet Capacity: 22
• Paper Size: 5 1/2 x 8 1/2 Inch (140 x 216 mm) to 12 x 18 Inch (305 x 457 mm)
• Speed: 1,500 sets/hr

Product Details

• Electrical Requirements: 115 V. 60 Hz
• Dimensions (D x W x H): 23 x 46 x 36 Inch (584 x 1168 x 914 mm) (20 Inch (508 mm) W with conveyor stored)
• Shipping Weight: 280 lbs.

Safety Features

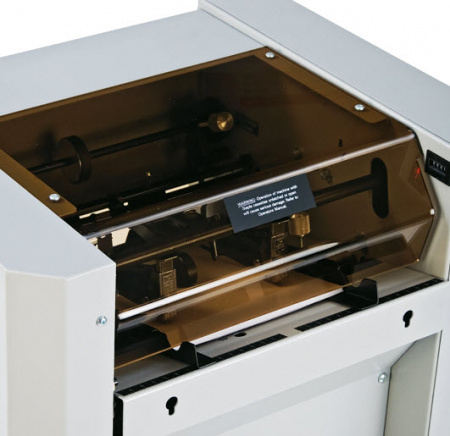

• Transparent safety access cover—machine will not operate with cover in open position

Characteristics

• Jogs, staples, and folds in one operation
• Quick and easy set-up and adjustment
• Variable speed produces booklets up to 88 pages (off-line)*
• On-line saddle, corner, and side stapling capability
• Fold only capability
• Heavy-duty staple clinchers produce flat-finish staples
• 2 stapling heads, 5 stapling positions uses high-capacity, 5,000-staple cartridges
• Auto-stop and signal when staple cartridge is empty
• Powered exit conveyor
• Transparent safety access cover—the machine will not operate with cover in open position
• Mounted on heavy-duty casters
• Optional interface for on-line use with the MBM FC 10
• Optional face trimmer

Warranty

• 3-year limited warranty on Sprint 5000 bookletmaker, excluding wearables
