Description

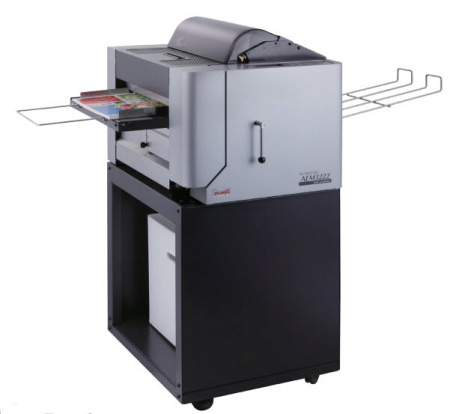

Martin Yale Drylam ALM 3222 Automatic Laminator

Martin Yale has teamed with DryLam to add 2 new laminators to their well-known line of print finishing products. The ALM 3222 Automatic Laminator is a compact machine that takes up less than 4 sq. ft. There's no need to make table space for the ALM3222, it comes with its own stand with locking roller casters for mobility. The ALM 3222 takes less than 5 minutes to warm up and its ready to go. It can handle up to 200 sheets of paper in sizes ranging from letter (81/2 x 11) up to digital paper (13” x 19”). It can run virtually unattended. Choose from two trimming methods: flush trim or sealed edge on all 4 sides. The ALM 3222 accepts paper weights from standard copy paper up to 130lb cover paper. Film thickness can range from 1.5mil up to 5mil. The ALM 3222 uses exclusive ALM ASAP Roll Film, glossy and matte films are available, please call for details.

FEATURES

• 120 Volt, 15 amp service with economy mode
• Ultra quick warm up of less than 5 minutes
• Sheet sizes: 13 x 19 INCH, 12 x 18 INCH, 11 x 17 INCH & 8.5 x 11 INCH
• Automatic single or double sided lamination
• Adjustable Automatic Flush or Sealed edge trim option micro adjustable for precise flush cut or custom encapsulation
• 1 year parts and labor warranty

SPECIFICATIONS

• Laminating Speed :20 INCH - 68 INCH/min.
• Temperature Range :170-270°F
• Ultra Fast Warm-Up Time : Approx. 5 minutes
• Thickness of Objects : 20 lb bond - 130lb cover
• Paper Feeding Capacity : 200 sheets, Adjustable Paper Guide
• Applicable Sizes :
• Letter : Paper Size 8.5 x 11 INCH / 13 x 19 INCH / 12 x 18 INCH
• Tabloid : Paper Size 11 x 17 INCH
• Trimming Methods : (2 modes) Flush trim or edge seal for all 4 sides of the print
• Operation Panel : LCD display for start, stop, temperature, speed and trim settings, leading and trailing edge side cuts are adjustable
• Other Features : Laminated sheet counter; Film tension control, Roller gap lever, Paper thickness adjustment lever, Automatic stop at end of film, Power saving mode, Emergency stop function
• Power Consumption : 900W
• Power Supply : AC 120V (60Hz)
• Net Weight : Laminator: 130 lbs. Stand: 48.5 lbs
• Included Accessories : Stand with film waste box, Printed operations manual

ALM Exclusive ASAP Roll Film Details

• Perfect for Digital Print technology
• Anti-static properties
• Gloss & matte versions available in the following:
  • 1.5mil, 12.6 INCH x 984 ft
  • 3.0mil, 12.6 INCH x 492 ft
  • 5.0mil, 12.6 INCH x 328 ft
  • 10.0mil, 12.6 INCH x 165 ft (Gloss Only)
  • 1.2mil, 12.6 INCH x 984 ft, Nylon (Gloss & Matte Versions)
