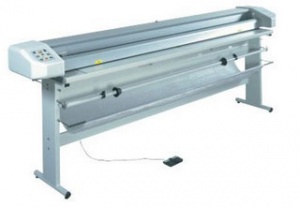

Neolt Set 520 Electro Super Trim 205 Inch Electric Rotary Cutter / Trimmer With Stand

Electro Super Trim (Electric) This industrial strength, feature rich precision trimmer was designed to meet the exacting demands of large panel sign and exhibit builders. Its heavy duty construction facilitates the trimming of non-ridged substrates up to 10mm thick. Cutter head operates bi-directionally at incrementally variable speeds to match the cutting requirements of various substrates. The cutter head is then mounted on a chrome plated rectangular guide rail with ball bearings and travels at speeds of up to 19 inches per second. Activating a convenient foot petal actuates the cutting function. The units electrically operated fixing bar stabilizes the material being cut. The design of the system permits horizontal output of trim edge for hand pickup or receiving table for delivery. The Electro Super Trim is equipped with dual "Laser Designators" which generate a florescent red "cut line," designating precisely where the cutter blade will cut. Unit is shipped with stand, lamp, roll holder and two adjustable reference guides. This is a special order unit check with us for lead times.

Electric trimmer with two rotating blades for cutting in both directions. Particularly strong with variable speed for cutting thicker materials. Strong blade holder carriage sliding on bearings mounted on a rectangular sliding bar. Fixed blade in painted stainless steel mounted on a reinforced cutting plane. The trimmings can be collected in a tray underneath or behind the machine using the rear exit. It comes complete with a movable reference square, lamp over the cutting area, fluorescent wire to show the cutting line and sheet holder. Very stable stand with adjustable feet to ensure easy levelling. Metallic components varnished with epoxy powder colour grey RAL 7035.

Weight: 661 lbs. Shipping Weight 761 lbs.

Other Neolt Electro Super Trimmers Available on this Site:

Neolt SET280 Electro Super Trim with a Paper Thickness of .039 and a Cutting Width of 110 inches

Neolt SET340 Electro Super Trimmer with a Paper Thickness of .039 and a Cutting Width of 134 inches
