Description

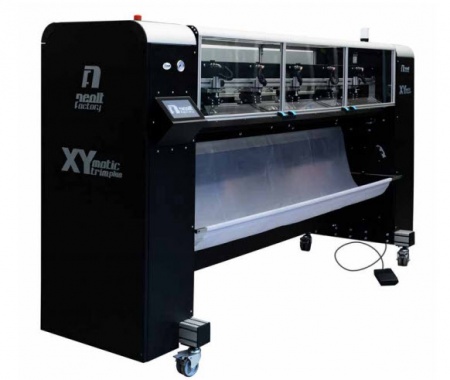

Neolt XY Matic Trim PLUS

MAIN FEATURES

• LCD Touch Screen display with intuitive and easy-to-use software
• Auto-alignment
• Double sensor to read cross-marks
• Adjustable speed X & Y axis
• Excellent cutting area visibility
• Pneumatic Pinch Roll with silent compressor inside the machine
• Automatic waste collecting system
• Plug & Play
• Up to 10 pneumatic vertical cutting units
• Double load reel
• Tower Light
• New alignment system of vertical cutting units
• Open cutting units (no paper jam)
• Monolithic machine structure
• Standard loading jumbo Roll 300mt
• Up to 20 customizable memories

OPTIONAL

• Single cutting unit (max 10)
• Central twin cutting unit
• Laser ray for vertical cut
• Table for copies collection

MATERIALS

• Paper (laminated or encapsulated)
• Wallpaper
• Canvas & Polyester (with liner)
• Reflective material
• PVC banner
• Vinyl & Vinyl sticker
• Display backlit & frontlit
• Magnetic rubber
• Polycarbonate in film

SPECIFICATIONS

• Width :1650mm (64.96 Inches)
• Cutting Thickness :1,2 mm (0.03, 0.07 Inch) max
• Speed Advancement : 1-50 m/minute
• Cutting unit max : 10 vertical unit
• Horizontal cutting speed : 1-150 m/minute
• Power supply : 230V - 50Hz - 650W
• Dimensions: L515 x H1350 x P660
• Weight : 290 Kg (639.34 Pounds)
