ORION 920DX

Call Toll Free: 877.336.6877 for Pricing

Availability
Online
In Store
Same Day

Description

ORION 920DX


ORION DX Products Qualified By Transport Canada for Air Cargo Screening

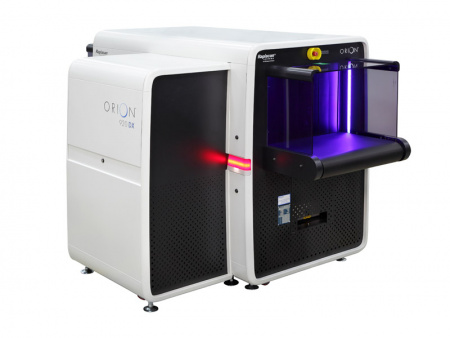

The new 920DX is a High Performance 640mm by 430mm tunnel dual view checkpoint screening system with excellent threat detection alert capabilities.


SPECTRUM 4-COLOR IMAGING
920DX can present images to the operator in the Classic 4-color and the new proprietary Spectrum 4-color (SP4) option providing superior image, allowing improved security by quick and accurate identification of threats and increase in throughput.

EXPLOSIVES AND NARCOTICS DETECTION
Target and NARCScan are designed to detect a wide range of explosives and narcotics respectively in real time during the scanning process by marking a potential threat on the X-ray image. Rapiscan® Systems detection algorithms are based on regulatory approved material analysis techniques.

DUAL MODE AUTO ZEFF
The Dual Mode Zeff feature aids the operator in the identification of organic materials, either in Range Mode which highlights areas based on operator selected Z-effective values of 7, 8 or 9, or in Interactive Mode which gives the operator the option to display the Z-effective number of a selected pixel.

EUROPEAN AVIATION COMPLIANCE
920DX performance is in full compliance with the mandatory regulations (EC) No. 300/2008, (EC) Implementing Regulation 1998/2015 and update 815/2017, EC Implementing Decision 8005/2015 and update 3030/2017 for aviation security in the European Union.

logo

logo

SPECIFICATIONS

  • TUNNEL SIZE :640 mm x 430 mm (25.2 in x 16.9 in)
  • LENGTH :2,316 mm (91.2 in)
  • WIDTH : 1,503 mm (59.2 in)
  • HEIGHT : 1,390 mm (54.7 in)
  • WEIGHT : 897 kg (1,978 lbs)

Demo Video


Video showing the 920CX model




If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com


Specifications

Manufacturer Part #:
Dimensions (LxWxH): 91.00in. x 59.00in. x 55.00in.

SPECIFICATIONS

  • TUNNEL SIZE :640 mm x 430 mm (25.2 in x 16.9 in)
  • LENGTH :2,316 mm (91.2 in)
  • WIDTH : 1,503 mm (59.2 in)
  • HEIGHT : 1,390 mm (54.7 in)
  • WEIGHT : 897 kg (1,978 lbs)
