Description

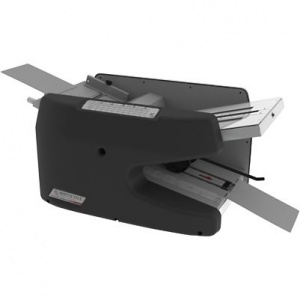

Martin Yale 1611 AutoFolder - Ease of Use Auto Folder - Paper Folding Machine-

REPLACES Martin Yale 1601 Paper Folding Machine

The Martin Yale 1611 - Ease-Of-Use AutoFolder - Paper Folding Machine is an ideal Paper Folder for large mail rooms and offices. This high-speed paper folding machine automatically feeds and folds a stack of documents up to 8-1/2" x 14" at a speed of up to 9,000 sheets per hour. Use the auto folder to create five different folds: letter, half, z-fold, double parallel, and right-angle. No fanning is needed. Simply put the paper in and fold. Folder handles sheet sizes from 3-1/2" x 5" to 8-1/2" x 14" and types from 16 lb. bond to 70 lb. index. The feed table capacity is 150 sheets. Stapled sets of up to five sheets can be folded by hand-feeding documents into the feed table bypass. The conveyor exit table makes convenient, easy-to-handle stacks. The electrical auto folder also features removable fold tables, stacking wheels, self-centering paper guides, auto jam detection, and auto-shutoff.

Need Parts for the 1611? We have them.
See Below. All Parts are in Stock

Use the link below if you need it to make sure you are ordering the correct part name and part number, or if you do not see the Part listed below on this page.

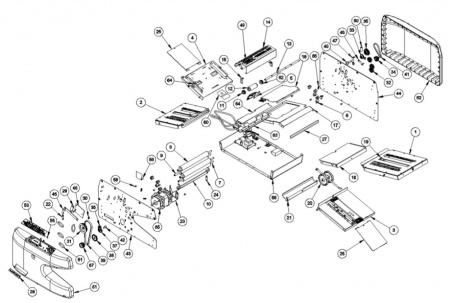

Martin Yale 1611 Autofolder Paper Folding Machine Parts List and Exploding Diagram

FEATURES

• Improved feed system
• Removable fold tables
• Easy access to rollers for cleaning
• Improved stacking wheels
• Self centering paper guides
• Improved skew adjustment
• Longer first fold table
• Modern Appearance

SPECIFICATIONS

• Dimensions 17-1/5"H x 20-3/5"W x 14-1/5"D
• Type Automatic Friction
• Speed (Sheets/Hour) 9,000 Maximum
• Folds Double Parallel, Letter or C-Fold, Right
• Angle/French, Z-Fold
• Minimum Paper Size 5" x 5"
• Maximum Paper Size 8 1/2" x 14"
• Paper Weight Maximum 70-lb
• Paper Weight Minimum 16-lb
• Manual Bypass Sheet Capacity No
• Accepted Paper Types Non-Glossy
• Voltage 110v
• Plus Shipping & Handling

Spare/Replacement Part for Martin Yale 1611 AutoFolder Ease of Use Autofolder Paper Folding Machine

Martin Yale Replacement Part W-O1601006 Conveyor Belt Pully Roller for 1611 and 1711 Paper Folders

Martin Yale Replacement Part W-O1601038 PC Touch Tray for 1611 and 1711 Paper Folding Machines

Martin Yale Replacement Part M-S025055 140T 3MM HTD Belt for Autofolder Paper Folding Machine - 1611 and 1711

Martin Yale Replacement Part W-N1617092 – hold down wheel for Autofolder Paper Folding Machine – 1611

Martin Yale Replacement Part W-O1617061 – feed shaft. for Autofolder Paper Folding Machine – 1611

Martin Yale Replacement Part M-S037421 – o-ring for Autofolder Paper Folding Machine - 1611

Martin Yale Part # M-O1617120 - 1611/1711 Back Cover

Martin Yale Part # M-O1617119 1611/1711 FRONT COVER

Martin Yale Replacement Part M-O1601081 CONV DRIVE GEAR-ON LINE

Martin Yale Replacement Part M-O1601082 CONV-STEP GEAR-ON 1611 LINE

Martin Yale Replacement Part M-O1601080 CONV.GEAR,DRIVEN-ON 1611 LINE

Martin Yale Replacement Part M-S001169 Gear Screw (3 Each) for Autofolder Paper Folding Machine – 1611

Martin Yale Replacement Part M-S004083 Gear Screw (6 Each) for Autofolder Paper Folding Machine – 1611

Martin Yale Replacement Part W-O1601043 P/C Paper Support for 1611 Paper Folder

Martin Yale Replacement Part M-S037094 4 Inch Fan Le???? H.Plast-On 1611 Line

Martin Yale Part # M-O1601006 CONVEYOR BELT PULLEY-ON 1611

Martin Yale Part # M-O1601019 MICROSWITCH LEVER-ON 1611 LIN

Martin Yale Part # M-O1601062 CONV.STEP GEAR STUD-ON 1611 L

Martin Yale Part # M-O1601086 ROLLER GEAR-ON 1611 LINE

Martin Yale Part # M-O1617118 1611 DAUGHTER BOARD

Martin Yale Part # M-O1617128 CONVEYOR TABLE RULER-ON 1611

Martin YALE PART # M-S022013 18T MXL PULL.25" BOR (1611)

Martin Yale WRA1617089 MOLDED FEED TIRE W/SET SCREW

Martin Yale W-A1617054 ASY RETARDER ASSEMBLY

Martin Yale M-O1601083 PULLEY-GEAR COMBO-ON 1611 LIN

Martin YALE WRA1711SP Survival Kit for Martin Yale 1611 and 1711
