Description

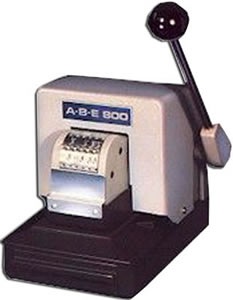

ABE 800 FD-2 Fixed Wide Die Manual Security Perforator-3 Lines of Text

The ABE 800 FD-2 manually operated, fixed wide die security perforator marks up to 12 documents at a time. This model has an adjustable , up to 12-character die to print a range of letter variations. The 800 FD-2 perforator is manually operated requiring the pull of a handle to perforate the document set. The die block IS NOT removable. Its heavy-duty alloy died casting ensures a long lasting life.

A maximum of 10-12 characters can be imprinted per line and 1, 2 or 3 lines can be imprinted per document.

Click on the "supplies" icon to view the most popular perforator plates.

SPECIFICATIONS

Dimensions: 9-3/4" H x 8-1/8" W x 12-3/4" D

Shipping Weight: 38 lbs.

Additional Options

For Wide Die (use when width of perforation exceeds 2-1/4" (1 Line) up to 4-3/8" add to standard narrow die unit prices

(2 Lines)

(Limit the number of characters of 3rd line) (3 Lines)

ALPHA Wheels (Style 1)-Set up charge per wheel variation (max letters =10, or 9 with a blank)

STYLES 2,5,or 6-Number Wheels, add additional charge

STYLES 3 or 4-Number Wheels, add additional charge of :(Style 3 & 4 wheels require a wide die which is included in price)

STYLES 7 or 8-Number Wheels, add additional charge

ADDITIONAL Wheels (Number +/or Alpha)-add per wheel

220Volts/50 Hz motor

Electric lock (with 2 keys) Part#05578-12

Fixed Guide (finger trip switch only)-1/4" min. also used for x-ray units. Back guide only

Finger trip switch Part#66228-Also used for x-ray units.

Throat reduction (.030" for x-ray)

Group drilling (provides for all holes on a line) includes punches and pressure plate-per line. Narrow Die only

Foot Pedal operation (Assembly Part#66453)

"Bottoms-In" feature, added set-up charge (uses number wheels only)

Styles 5-8 "Fixed Text" .036 punch "PER LINE" additional charge

Badges/Credit cards/X-RAY Machines require a fixed rear guide, reduced throat, and finger trip switch (Model 700). (For Model 800, fixed rear guide and reduced throat)
