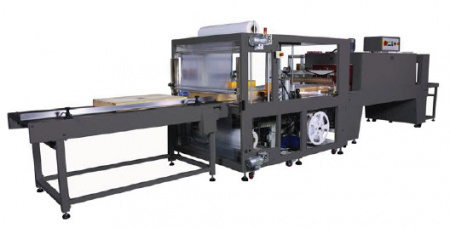

Poly Bundlers | Preferred Pack PP-6030AF/PP-8040 Features dual side seal to trim off excess film for “Full Package Enclosure”

Features dual side seal to trim off excess film for “Full Package Enclosure”

Packages or multi-pack items in Trays using polyethylene film with a fully enclosed package using (2) Two Side Seal Wheels to cut of the excess film on both sides of the package for a “Full Enclosure” The excess trim scrap is wound up on dual scrap wind up wheels. Can be used for a wide variety of package sizes and applications from individual items to multi packs. Great for large items like Doors, Ladders, Furniture, mattresses, etc. Packages can be hand loaded or can be loaded automatically without an operator from a conveyor line. With an infeed belt conveyor the package will move forward past the sealing bar to be sealed, once sealed the power-driven discharge conveyor will advance this pack into the Dual Side Seal wheels to be sealed and trimmed and then feed into the shrink tunnel to complete the sealing and shrinking process. This dual roll system (one roll at the top and one roll at the bottom) fully encapsulates the package and produces a “Full Enclosure” with the two ends of the package sealed by the cross seal bar and the sides of the package sealed by the dual side seal wheels. The conveyor of the shrink tunnel advances the package automatically into the shrink tunnel and upon exiting the tunnel the exit cooling fans on the tunnel help cool down and set up the polyethylene shrink film.

Features

• 39” Wide Hot Knife Seal Bar with safety switches.
• Adjustable dual side seal wheels make for easy adjustment to run different package sizes
• Maximum Package Size: Unlimited Length x 35” W x 12” H
• Maximum film width 37”
• In-Line power belted conveyor advances product to pusher which pushes package into seal area.
• Easy-to-use control panel with digital temperature controls
• Dual film rack with independent Heavy Duty motor drive
• Scrap from side seal wheels is automatically rewound onto excess film take-up reels
• Color Touch Screen HMI
• Conveyor height is 33.5”
• Omron digital temperature controls
• Good air circulation inside of tunnel chamber uses dual blower motors for best shrink quality results
• Uses dual blower motors for high-efficiency shrink
• Machine speeds of 8 to 12 PPM depending on product size and film gauge used.
• Tunnel size of 70” L x 31” W x 16”H
• Heavy duty high RPM, high air velocity blower motor.
• Heavy duty Dead Roller rod conveyor
• Conveyor speed of 20 meters/min (66 ft/min)
• Cooling fan on the discharge end of tunnel
• Emergency stop switch.
• Heavy-duty leveling pads.
• Heavy Duty Casters
• Air regulator with water trap
• Machine comes fully crated and protected during shipment.
• Omron PLC controller

SPECIFICATIONS

• Electrical Power:220V - 3 Phase
• Seal Size:39 Inch (991 mm)
• Max Roll Width:37 Inch (940 mm)
• Max Pkg Length :Unlimited
• Tunnel Size (L x W x H):70 x 31 x 16 Inch (1778 x 787 x 406 mm)
