Tray Sealer | PP-YTA-400-2 Preferred Pack Automatic Manual Tray Sealer 400 × 185 mm (15.7 x 7.28 Inch)

Quantity:

Price You Pay:

$5,900.00

Estimated Oversize Handling Fee :

$100.00
Yes! This Item Is In Stock!

Maximum tray length × width:

Availability
Online
In Store
Same Day

Description

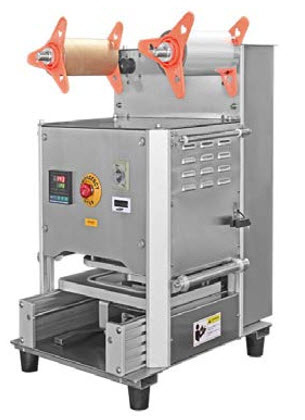

Tray Sealer | PP-YTA-400-2 Preferred Pack Automatic Manual Tray Sealer 400 × 185 mm (15.7 x 7.28 Inch)


Ideal for:
  • Ready meals
  • Frozen foods
  • Bulk packaging of food items
  • Retail packaging

  • The Preferred Pack Model PP-YTA is an Automatic “Shuttle Style”, Tray Sealer that will seal lidding film to the tray and “Die Cut Excess Film Around the Tray” for a nice clean retail appearance. This is a fast and easy way to seal low to medium quantities of trays at an affordable price.

    This Automatic shuttle style tray sealing machine is designed as a tabletop unit or it can be placed on a bench and used for sealing lidding film to trays. The operator simply loads the tray or trays into the tooling cavity and press on the foot switch and the tooling moves into the seal area where the lidding film will be sealed to the tray or container for an attractive look and the film will be die cut around the tray via the top tooling then the scrap is automatically wound up. The temperature and sealing time can be set depending on the type of tray and material thickness being used. When you load the tray the operator will push the handle of the tooling tray inward to start the sealing cycle, once inside it will apply the seal pressure to seal the tray and die cut around the tray to make a nice clean cut leaving no scrap, the scrap is automatically would up on a scrap wheel and the operator will then pull the tray outward to remove the sealed tray. The film is then automatically advanced for the next package. This machine is designed to ensure that each compartment of the tray is separately sealed. Easy changeover of tooling allows operator to run different trays sizes easily.

    logo

    Standard Features Include:


    1. #304 Stainless Steel Frame and Aluminum Construction
    2. Uses upper tooling to die cut around tray for clean retail appreance
    3. Digital temp controls
    4. Max tray depth is 100 mm (4.3 Inch)
    5. Suitable for PP, PE, PET, APET or CPET Trays
    6. Adjustable sealing timer
    7. Warm up time of only 5 minutes
    8. Fast cycle time of 6 seconds or 8-10 PPM on single tray
    9. Automatic film indexing
    10. Includes one set of tooling with machine
    11. Automatic operation using foot switch
    12. Consistent leak proof seals
    13. Low Maintenance
    14. Fast and easy tooling changeover for different tray sizes in 5 minutes
    15. Safe-Automatic shut off to prevent injury if safety guard activated

    logo

    SPECIFICATIONS

    • Max Roll Diameter : 8.6 Inch
    • Max Tray Depth : 4.3 Inch (110 mm)
    • Max Film Width : 18.5 Inch for YTA-400
    • Maximum tray length × width :
      • Sealing 2 at a time: 400 × 185 mm (15.7 x 7.28 Inch)
    • Cycle time : 6 seconds

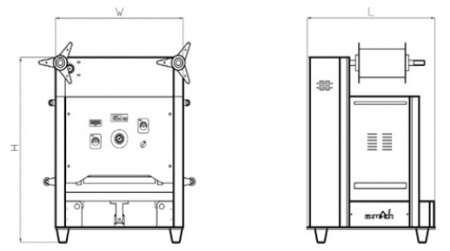

    • Machine Dims : 22 x 29 x 26 Inch (550 × 740 × 650 mm)
    • Warranty : One (1) year from date of delivery
    • Weight : 150 kg (330 lbs)
    • Max Film diameter : 220 mm (8.7 Inch)
    • Air pressure : 0.6~0.8 Mpa (1 CFM @60 PSI)
    • Total power : 2 kw (2000 watts)

    Configuration

    • PLC: MITSUBISHI FX2N
    • Pneumatic accessories: Airtac
    • Main body material: 304 stainless steel
    • Mold material: 6061 aluminum
    • Electrical accessories: Schneider
    • Thermostat: MH-PT100

    logo

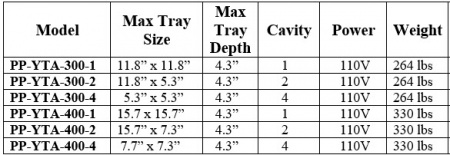

    Other Preferred Pack Model PP-YTA-300 Automatic Manual Tray Sealer

    For Order PP-YTA-300-2 Max Tray Size 300 × 135 mm (11.8 x 5.3 Inch)

    For Order PP-YTA-300-4 Max Tray Size 135 × 135 mm (5.3 x 5.3 Inch)

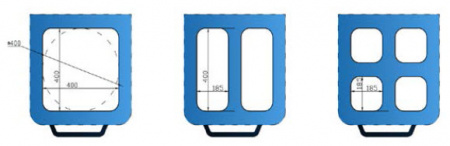

    Additional Tooling
    Additional Tooling for PP-YTA-300 and PP-YTA-400 Series Preferred Pack Automatic Tray Sealers

    OPTION
    Trays for PP-YTM-300 and PP-YTM-400 Series Preferred Pack Automatic Tray Sealers

    Lidding Film PP-YTM-300 and PP-YTM-400 Series Preferred Pack Semi-Automatic Tray Sealers

    Date Code Ribbon Printer for PP-YTM and PP-YTA Series Preferred Pack Tray Sealers



    Trays and Lidding Film quoted upon request.



    Optional Installation: To be performed by factory trained service engineer. Customer is responsible for uncrating of machine and placing it in position on floor. Customer is also responsible for bringing necessary air and electrical requirements to machine. Service engineer will set up machine, train operators and maintenance personal on all machine functions and routine maintenance procedures. Service engineer will make sure customer is running production and customer is required to sign off on installation after completion. Installation and training is billed at prevailing service rates of $120.00 per hour for labor ($960.00 per day) and $100.00 per hour for travel time. Air fare, hotel, car rental and stay expenses are additional if required.

    Product Samples:Are required to make sure your equipment is set up and runs properly prior to shipment. 5-10 samples of each tray size and film are required for evaluation and testing.



    If you have any questions or concerns, contact a customer service representative today.
    Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com


    Specifications

    Manufacturer Part #: PP-YTA-400-2
    Dimensions (LxWxH): 22.00in. x 29.00in. x 26.00in.

    SPECIFICATIONS

    • Max Roll Diameter : 8.6 Inch
    • Max Tray Depth : 4.3 Inch (110 mm)
    • Max Film Width : 18.5 Inch for YTA-400
    • Maximum tray length × width :
      • Sealing 2 at a time: 400 × 185 mm (15.7 x 7.28 Inch)
    • Cycle time : 6 seconds
    • Machine Dims : 22 x 29 x 26 Inch (550 × 740 × 650 mm)
    • Warranty : One (1) year from date of delivery
    • Weight : 150 kg (330 lbs)
    • Max Film diameter : 220 mm (8.7 Inch)
    • Air pressure : 0.6~0.8 Mpa (1 CFM @60 PSI)
    • Total power : 2 kw (2000 watts)
