Description

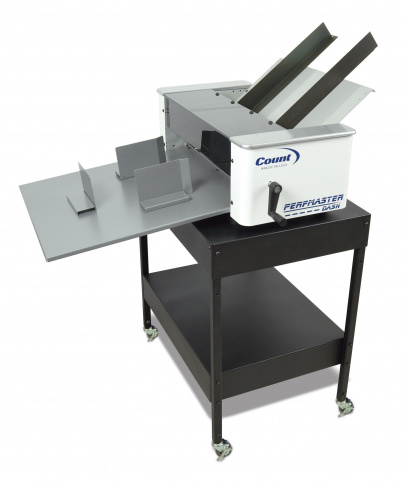

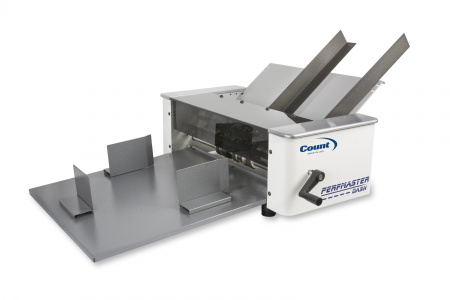

COUNT | PerfMaster Dash Perforating and Scoring Machine (PMD)

The COUNT PerfMaster Dash manually operated perforating and scoring machine is ideal for lower volume, budget-conscious applications. The simple manual hand-crank operation makes the PerfMaster Dash easy for anyone to use.

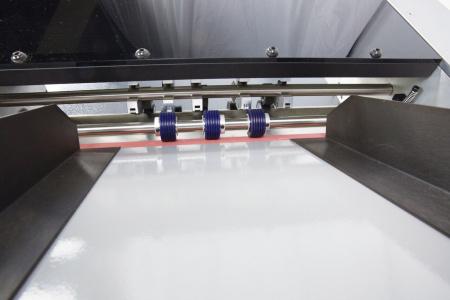

The automatic top friction paper feed system is efficient and easy-to-use. Feed single sheets, coated stock, multi-part forms, and open or glued edges. The hand crank makes it possible to produce thousands of sheets per hour with ease.

FEATURES

• Easy-to-use hand crank operation is simple and affordable.
• Removable receiving tray and magnetic paper feed guide rails make for easy mobility and tabletop use.

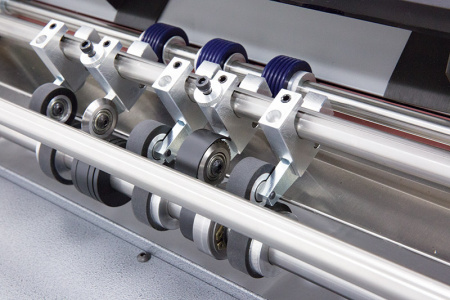

• Quickly change from perforating to scoring in seconds.
• Easily set Perf/Score depth control.
• 17 Inch wide feed capacity.
• Feeds single sheets, coated stock and multi-part open or glued edges.
• Magnetic paper guide rails on the feed table and receiving tray can be easily adjusted to accommodate the size of the paper.
• Optional support stand available for easy mobility.
• Clear top lid provides visibility and easy internal access.

SPECIFICATIONS

• Paper Feed :Vacuum
• Max Perf/Score Speed : Based on operator
• Paper Weight Range : 60 - 350 (gsm)
• Max Sheet Size : 24.0 L x 18.0 W in (61.0 x 45.7 cm)
• Min Sheet Size : 4.0 L x 4.0 W in (10.2 x 10.2 cm)
• Max Perf/Score Locations per sheet : 4
• Product Dimensions : 44.0 L x 32.0 W x 32.0 H IN
• Product Weight : 100 lbs (45 kg)
• Electrical : None
