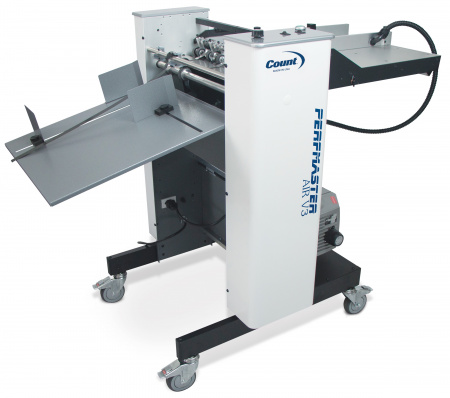

COUNT | Perfmaster Air V3 Perforating and Scoring Machine (PMAV3)

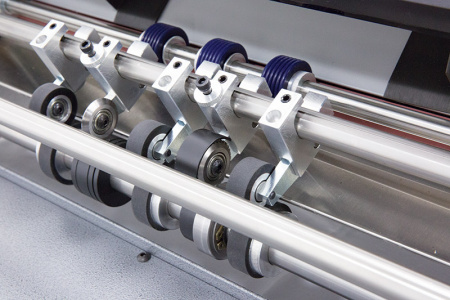

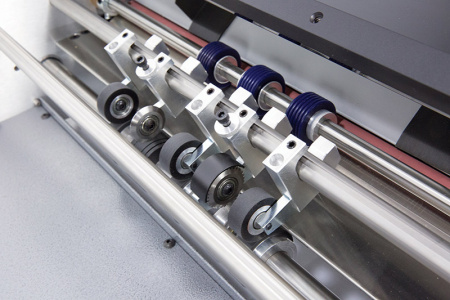

The COUNT PerfMaster Air V3 is a simple-to-use vacuum-feed perforating and scoring solution that gets the job done quickly. The built-in register guide draws the paper against a side rail to ensure accurate registration of each sheet. You can easily set up for a wide range of paper stocks, and switch from perforating to scoring in seconds. You have 5 different interchangeable perf wheels available, including standard and micro-perf options.

FEATURES

• Built in stand with wheels makes for easy mobility.
• Quickly change from perforating to scoring in just seconds.
• 18 Inches wide paper feed capacity.
• Easy to set perf and score depth control.
• Capable of feeding single sheets, coated, multi-part open and glued edged stocks.
• Paper stops on the receiving tray can be easily adjusted to accommodate the size of the paper.

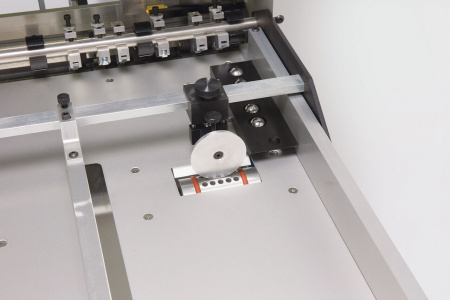

• Guide rails on the paper feed table are easily adjustable for various paper sizes.
• No need to fan the paper before feeding it through the machine.
• Bottom vacuum feed and dial controlled speed adjustment allow for easy sheet spacing control.
• Metal paper guide keeps paper flat on the receiving tray.

SPECIFICATIONS

• Paper Feed :Vacuum
• Max Perf/Score Speed : 26,000
• Paper Weight Range : 60 - 350 (gsm)
• Max Sheet Size : 20.0 L x 18.0 W in (50.8 x 45.7 cm)
• Min Sheet Size : 4.5 L x 6.0 W in (11.4 x 15.2 cm)
• Max Perf/Score Locations per sheet : 4
• Touch Screen Controls : True
• Product Dimensions : 44.0 L x 32.0 W x 32.0 H IN
• Product Weight : 255 lbs (116 kg)
• Electrical : 115 V, 60 Hz, 20 A or 230 V, 50 Hz, 20 A (Check before purchasing)
