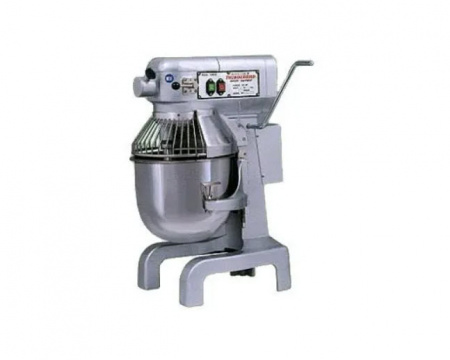

Food Processing Equipment | Thunderbird ARM-02 Planetary Mixers (20-Quart Capacity)

The Thunderbird ARM-02 is a heavy-duty, all purpose mixer that uses a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results. The wide-faced, hardened alloy steel helical gears deliver energy at pre-selected fixed speeds. The heavy-duty, stainless steel, wire front bowl guard opens easily and features a slot for adding ingredients. The bowl guard interlock prevents the mixer from running if the guard is opened or the bowl is lowered. These units feature moisture resistant switches, No-Volt release, and has a 15-minute timer that automatically shuts off the machine in any speed after the predetermined time has elapsed.

FEATURES

• 20-quart capacity
• 1-15 minute timer for continuous or timed operation
• Powerful 3/4 HP motor
• 115v/60/1, 14amps (220v/60/1 and 220v/50/1 available at additional cost)
• 3-Speed gear box
• Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
• Motor cooling system.
• New safety Guard available.
• NSF approved coating.
• Baked painting.
• Highly reliable moisture resistant stop and start switches
• Motor thermal protector.
• No-volt Release: Prevents activation of the mixer in the event of power interruption
• Bowl lift: Manual bowl lift operated and self-locking in to position
• #12 size taper hub for attachments
• Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
• Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle

SPECIFICATIONS

• Motor speed: 3
• Motor HP: 3/4
• Motor amps: 14
• Electrical: 115/60/1
• Other Electrical options: 220v/60/1 and 220v/50/1
• Beater Speed Range: 46-155
• Hub Speed Range: 106-357
• Net Weight: 225 lbs
• Ship Weight: 249 lbs
• Dimensions W-D-H 15 x 22 x 32 Inch (adjustable)
• Shipping Dimensions W-D-H 22 x 22 x 38 Inch (adjustable)
