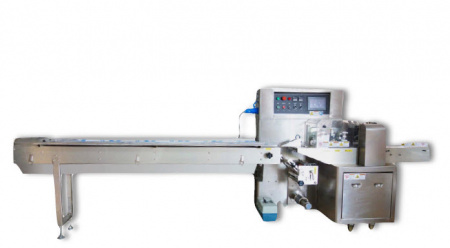

Wrapper | Preferred Pack C250 IVF “C” SERIES Inverted Horizontal Flow Wrappers

Great design for feeding small items or item that are difficult to transport or transfer on a flighted infeed conveyor. Inherit all advantages of the Standard “C” Series, the film comes up from the bottom and the fin seal is on top. The film travels down the length of the infeed where products are loaded directly onto the film and carried through the sealing jaws which makes transferring small products simpler.

SPECIFICATIONS

• Speed :40 to 100 ppm
• Seal Jaw Width :4.3 Inch (110 mm)
• Bag Length : 2.5 - 11 Inch (65 mm - 280 mm)
• Bag Width : 1.25 - 4.2 Inch (30 mm-110 mm)
• Max Film Width : 3.5 Inch - 9.8 Inch (90 mm-250 mm)
• Max Product Height : 1.5 Inch (40 mm)
