Vision Inspection System | Preferred Pack Economy Vision Intuitive Vision Defect Detection System

Quality control is made easy with the Economy and Economy Plus models of the vision systems. Can be installed on virtually any existing equipment such as conveying systems, packaging machinery or assembly lines.

FEATURES

• 100% production quality control
• Can be combined with in-line reject gates, blow offs for automatic product divert
• Eliminate the need for operators to sporadically check products
• Categorize faults to find main source of faulty products
• Available with up to 4 cameras

Economy

• Ability to read 1D and 2D codes
• OCR (object character recognition) such as date check
• Area detection
• Pattern search
• Edge detection
• Presence detection (i.e. cap presence, design elements).

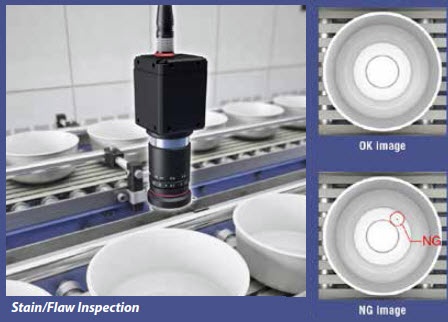

• NG “no good” product output to connect to your machine, for example, to trigger a machine stop or external divert gate.

Economy Plus

• Measurement
• Contaminant detection
• Counting
• Auto-teach

Complete System Package Includes

• Fully assembled control box
• Vision controller including lighting controller
• 2 Mega Pixel monochrome camera
• Camera lens
• 82 mm LED bar light
• Full set of mounting brackets
• 19 Inch monitor and mouse
• Complete 5 m cable set
• Trigger sensor
• Red/green indicator stack light and buzzer
• Wiring diagrams

Optional Conveying System

• Available in multiple lengths in 1 m (3ft) increments
• Speed following
• Vacuum available for light products
• Backlit conveyor option for clear products

Installation & Training

• Typically takes 1-2 days at customer site
• Step-by-step training provided on the entire system
• Auto manual generator is part of the software package
