Description
Food Processing Equipment | Preferred Pack MXS-1000 Ribbon Blenders Process Mixers
Note: "The ideal working volume for the MXS Blender is 40-70% of the capacity number."

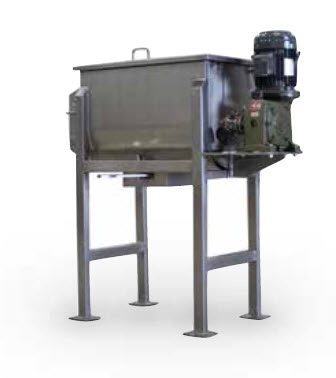

Model MXS-1000 Ribbon Blender/Mixer designed for the mixing of dry powders and or granule products.The model MXS-1000 has a capacity of 1000 liters / 35 cubic feet / 264 gallons or 2,200 lb.
Primarily used in the food, pharmaceutical and cosmetic industries these machines are designed for mixing dry powders.
The outer ribbon pushes the material from the two sides to the center and the inner ribbon pushes the material from the center to both sides to provide highly effective mixing. Used in many fields such as Chemical, medicine, food and construction to mix different kinds of powders, powders with small quantity of liquids and powders with granules.
FEATURES
- Stainless Steel construction, made with # 304 stainless steel
- Ribbon style blades or Paddle style rotating arm to mix product are available
- Rotating arm speed of 38 RPM for fast consistent mixing
- Capacity: 1000 Liters / 264 gallons / 35 Cu Ft or 2,200 lbs
- Loading Capacity: 40-70% (400-700 litre / 105-185 Gallon / 14-24 cubic ft or 880-1540 lbs)

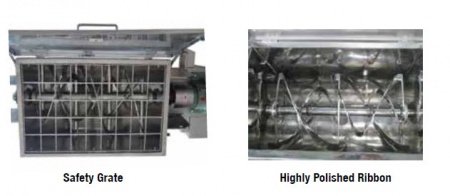

- Stainless Steel operator safety grid
- Bottom pneumatically operated discharge valve for easy removal of product
- Heavy Duty 15 HP direct drive UL Listed ABB motor
- Safety grate
- Safety cover
- CE Certification
SPECIFICATIONS
- 220 volt, 3 Phase Power (480 volt optional)
- #304 Stainless Steel
- Direct Drive
- Capacity:35 cubic ft- 269 gallon or 1000 liters- 2,200 lbs
- Power: 11kw
- Air: 60 PSI (required for pneumatic dump gate)
- Dimensions: 94 L x 52 W x 86 H Inch
- Weight: 700kg (1,540 lbs)
- Warranty:1 year on all parts
- Motor : 10 HP
Various inlets:

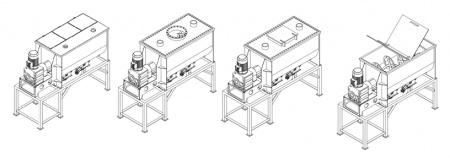

Various inlets on the top cover of the barrel can be designed according to different situations.
Discharging unit:
The drive types of valves are Manual, Pneumatic. Valves for consideration: Cylinder valve, Butterfly valve etc.
