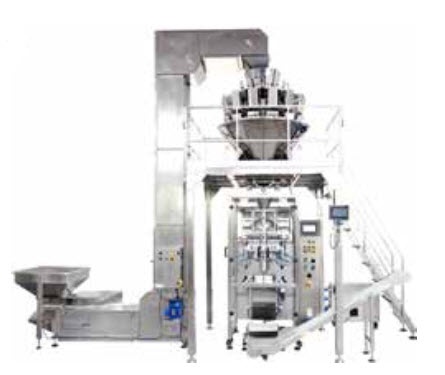

Baggers | Preferred Pack PM-520LX “PM” SERIES Vertical FFS Baggers

Automatic bagging machine recommended for all types of products packed in pillow or gusseted pouch using laminate film or BOPP roll stock.

Machine can use Auger Fillers for Powders, Volumetric Cup Filler for beans, rice, etc, or Multi-Head Weigh Scales for cereals, chips, candy etc.

FEATURES

• 7 Inch color touch screen
• Panasonic PLC controller
• Servo motor drive
• Photo eye for printed films
• Product counter

SPECIFICATIONS

• Speed :20 bpm
• Film Width :195 - 520 mm (7.68 -20.47 Inch)
• Bag Length :152 - 480 mm (6 -18.93 Inch)
• Bag Width: 101 - 259 mm(4 -10.23 Inch)

OPTIONS FOR VERTICAL FFS BAGGERS

Stainless Steel Frame Construction
Hot Stamp Printer (THR25A)
Video Jet 6320-32 Thermal Transfer Printer (1.26”x1.34” print area)
Video Jet 6320-53 Thermal Transfer Printer (1.26”x1.34” print area)
Gas Flush Device
Hole Punch (Euro Slot or Round Hole)
Tear Notch - Easy Open
Gusseted bag forming device
Additional Forming Device - Pillow Pack
Additional Forming Device - Gusseted or Square Tube
Film Static Eliminator
Bag Gusset Device
Powder Dust Extractor
Volumetric Cup Filler
Discharge Conveyor (INC-52) - 10 In. Width
Discharge Conveyor (INC-52) - 12 In. Width
Discharge Conveyor (INC-52) - 18 In. Width
Additional auger screw and tubing

DEMO VIDEO
