Description

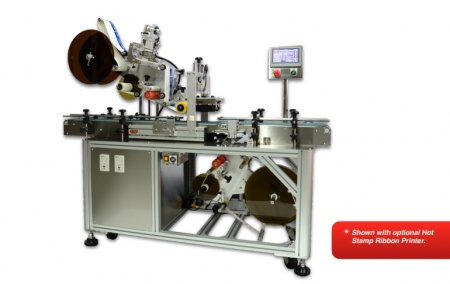

Labelers with Conveyor | Preferred Pack PP-559 Bottom Labeler

• The PP-559’s dual-head design makes this machine an exceptional choice for simplifying top and bottom labeling jobs. With both labeling heads working simultaneously, you can label your product in a single pass.

• In strict compliance with Good Manufacturing Practices (GMP) standards, the PP-559 is made of 304 stainless steel and anodized aluminum, and carefully treated to guard against the effects of harsher environments. This durability translates into a solid choice for labeling machine longevity.

• The built-in operating instructions and troubleshooting guide offered on the operator interface make it easy to use the PP-559. Hand wheels provide for simple adjustments, enable quick set-up and easy changeover.

• The PP-559’s standard Delta touchscreen with 20 program memory and label sensors can be effortlessly adjusted for various labeling applications. And, with the manual position setting, your labels are placed accurately on the product, each and every time.
• Future upgrades are simple. Thanks to the PP-559’s thermal or hot-stamp ribbon printer, you can easily incorporate a printer if the need should arise. This integrated feature simplifies label customization and allows the hot-stamp ribbon to work in sync with the labeler to ensure accurate code placement.
• Depending on your needs, this machine can be used for in-line automatic or semi-automatic applications.

• The production preset function means the machine automatically stops once the predetermined quantity of products has been labeled.
• The label count feature lets you precisely track progress at any point during the production run.
• The container/production run counter lets you see the exact production number for the day.
• The PP-559 features a Delta PLC and touchscreen control system that maintains default settings and memory even after the machine sits idle for a long period of time. That means you don’t have to waste time re-entering necessary information.

• The PP-559’s stepper motor essentially counts the “steps” necessary to reach the next label, ensuring fast, accurate label delivery.
• The PP-559’s controls are fully synchronized, ensuring that all components run at the same speed.

• The PP-559’s auto label-set feature confirms label sensitivity by detecting the separation between each label. With one push of a button, labeling is efficiently set up – and positioned correctly.
• The missing label-detect feature locates missing labels on the roll stock, and instantly shuts the machine down if one is found. This preventative feature ensures each product is labeled appropriately.

• The PP-559 can be easily and conveniently moved to other production areas, allowing for changes in production or products.
• All of our labelers are made of 304 stainless steel and anodized aluminum. This extremely durable metal is specially treated to guard against rusting and other effects from harsher environments.
• With height-adjustable conveyor belt, everything you need is within reach.

• All labelers are manufactured in compliance with Good Manufacturing Practices (GMP) standards.

FEATURES

• 304 stainless steel & anodized aluminum
• Delta PLC Touchscreen HMI control system
• Height-adjustable applicator
• Precise stepper motor label positioning
• 83 program memory
• Product counter
• Missing label feature
• Uses Pressure Sensitive Label Rolls
• Casters

SPECIFICATIONS

• LABEL TYPES: Top and Bottom
• Maximum Dispensing Speed: 80’/min (25m/min)
• Maximum Conveyor Speed: 80’/min (25m/min)
• Dimensions L-W- H: 68.75 x 32 x 66 Inches (1746mm x 813mm x 1676mm)
• Maximum Label Size: 7.8 H x 11.8 L Inches (152mm x 300mm)
• Maximum Container Width: 6.5 Inches (165mm)
• Maximum Container Height: 6 Inches (Flat 152mm)
• Conveyor Belt Width : 6.25 Inches (159mm) *custom widths available
• Spool Diameter : 14 Inches (356mm)
• Inner Core : 3 Inches (76mm)
• Voltage : 110/220 VAC 50/60 HZ 1 Phase
• Power in KW : 825
• Drive : Stepper Motor
• CONVEYOR HEIGHT : 29.5-39.5” (749-1003mm)
• NET WEIGHT : Approx 265 lbs (120 kgs)
