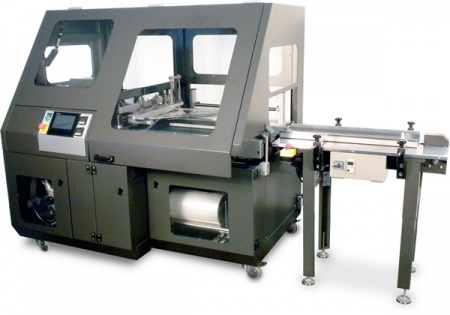

Preferred Pack PP-5600CS Fully Automatic L’Sealer Automatic Bagger
Fully Automatic Inline L'Sealer
APA (Automatic Product Adjustment) machine automatically adjusts inverting head and infeed conveyor to different package sizes from one touch control panel in less than 15 seconds!
The PP-5600CS Automatic Inline L'Sealer is ideal for sealing a wide variety of industrial and consumer products. The PP-5600CS features a Delta PLC with 6" color touch screen control panel with a 40 program memory, multiple languages, cycle speeds of up to 40 ppm, a vertical seal head design for great flexibility and taller packages, single piece hot knife seal bar with 2 year warranty, exclusive automatic motorized adjustment of seal head, infeed conveyor and inverting head, variable speed drive 0-95 FPM, front load film mount, pin wheel hole punch, self diagnostics on sensors, low voltage, broken scrap wind, fast product changeover, self-contained scrap removal system with built-in alarm when full.
Reliability, simplicity and ease of maintenance should provide years of dependable performance at low operational cost. The PP-5600CS is an extremely versatile machine capable of running a wide variety of industrial or consumer products. The PP-5600CS also features a motorized center seal that allows for precise seam placement and taller package heights.
Available Options:
- Pneumatic Hole Punch
- 3' Flighted Infeed
- 6' Flighted Infeed
- Belted Infeed Conveyors
- Flight Bar Conveyors for Multi-Packs
- Closing Conveyor
- Print Registration
Features
- Motorized adjustment of seal head, no crank handles to adjust
- Optional 3' or 6' flighted or belted infeed conveyor
- Front load film cradle with pin perf wheels
- Vertical seal head with one piece seal knife and blade
- 2 year warranty
- Automatic product adjustment (APA)
- Variable speed drive 0 to 110 FPM
- Speeds up to 40 PPM
- Single piece hot knife seal bar
- Locking casters
- Available Options:
- Pneumatic hole punch
- 3' flighted infeed
- 6' flighted infeed
- Belted infeed conveyors
- Flight bar conveyors for multi-packs
- Closing conveyor
- Print registration
SPECIFICATIONS
- Seal Area: 25 L x 20 W x 8 H Inch
- Machine Speed: Up to 40 PPM
- Electrical: 220V, 1 Phase, 20 AMP
- Air: 1CFM @ 80 PSI
- Minimum Package Size: 2.5 W x 3 L Inch
- Maximum Package Size: 24 L x 16 W x 8 H Inch
- Maximum Film Width: 24 Inch
- Speed 40 PPM
- Shipping Weight: 1,500 lbs
- Warranty: 2 years on parts, 2 yrs on seal blade
DEMO 1
DEMO 2
DEMO 3
DEMO 4
DEMO 5
DEMO 6
DEMO 7
DEMO 8
DEMO 9
DEMO 10
DEMO 11
DEMO 12
Specifications
Manufacturer Part #: | PP-5600CS |
Dimensions (LxWxH): | 77.00in. x 62.00in. x 72.00in. |
