Description

Shrink Packaging Equipment | Preferred Pack PP-5600E-SS (Stainless Steel) Entry-Level Fully Automatic L-Sealer Economy Automatic Combo System

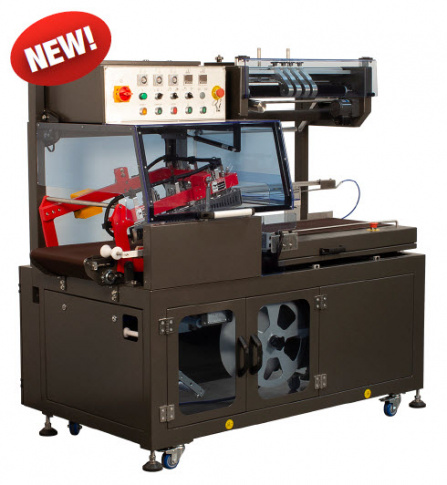

Model PP-5600E is an entry-level, fully automatic L-Sealer which provides an economical, durable and user-friendly solution for those who already have one or two semi-automatic L-Sealers and need to increase production speed and reduce labor costs.

The sealing system is capable of performing a smooth and firm seal line for a wide range of products such as toys, cosmetics, tools, food, electric appliances, etc. Use of photo sensors and timers controls the bag length for sealing. Excellent perforation system design allows the pin to be changed easily.

FEATURES

• Stainless Steel
• Teflon coated hot knife seal blade
• Fixed belt speed at 65 FPM

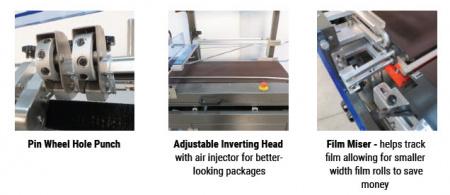

• Multiple pinwheel hole punches
• Dual emergency stop switches
• Self-contained scrap removal system
• Plexiglas safety covers
• Dual photo-eye (horizontal & vertical)
• Film miser - helps track film
• Locking casters with leveling pads

SPECIFICATIONS

• Machine Speed : 20-25 PPM
• Electrical : 220V, 1 Phase, 20 Amp
• Air : 2 cfm @ 80 psi

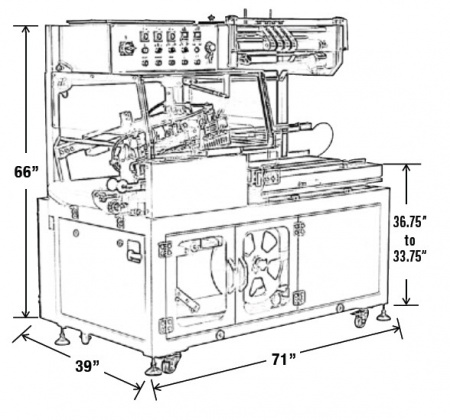

• Crated dimensions : 75 L x 43 W x 74 H Inches (1905 x 1092 x 1880 MM)
• Fixed Belt Speed :65 FPM
• Max Film Width : 24 Inch
• Large Seal Area :(3.9 L x 2.5 W x 1/8 H Inches) (100 x 63 x 25 MM)
• Max pkg Size : (22 L x 18 W x 4.75 H Inches) (559 x 457 x 121 MM)
• Max pkg Size : (22 L x 18 W x 4.75 H Inches) (559 x 457 x 121 MM)
• Shipping weight : 880 lbs
• Warranty : 1 year on parts

DEMO VIDEO
