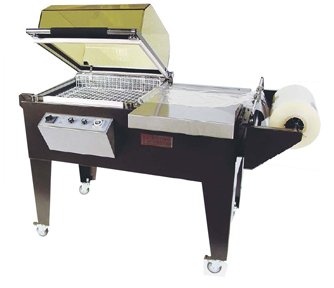

PP-76ST-SS (Stainless Steel) - All in One | One Step L'Sealer Shrinkwrap Chamber Machine

The PP-76ST-SS is a compact semi-automatic "All-in -One", one step L'Sealer Hooded Shrink Wrap Chamber Machine in Stainless Steel.. Machine comes with Band Seal Technology, Magnetic Hold Down for Seal and Shrink Cycle, Pinwheel Hole Punch and Casters.

This semi-automatic shrinkwrapper that is simple to use. The operator places the product on the package loading tray in between the two layers of centerfold film. The operator then moves the package into the sealing area and lowers the hood. Once the hood is lowered, the operator applies pressure to make the seal. When the shrink time is completed, the hood will automatically return to the up position and the operator may remove the completed package. Options include magnet hold down during seal cycle and powered discharge conveyor.

SPECIFICATIONS

• Material: Stainless Steel
• Seal Area (LxWxH): 16 x 22 x 18 INCHES
• Single Phase (LxWxH): 53 x 28 x 45 INCHES
• Crated Dimensions (LxWxH): 41 x 62 x 72
• Weight : 350 Lbs.
• Product Length : 56.00 in.
• Product Width : 30.00 in.
• Product Height : 45.00 in.
• Product Weight : 350.00 lbs.
• Max. Sealing Length : 22 in.
• Max. Sealing Width : 16 in.
• Max. Sealing Height : 10 in.
• Max. Shrink Film Width : 20 in.
• Power : 220 Volts - 25 amps
