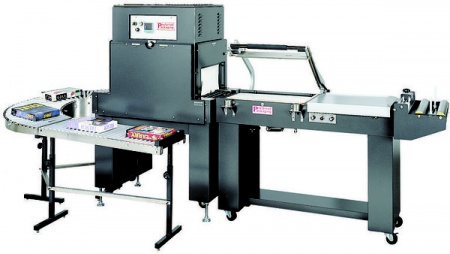

Preferred Pack PP1622MK | PP1808-28-SS (Stainless Steel) Combo L Bar and Shrink Tunnel Systems

The Preferred Pack PP1622 MK (Stainless Steel) Combo series L Bar Sealer and shrink tunnel has a 16" x 22" sealing area. This compact all in one unit that can be moved to where it is needed. Available in either a manual seal system or an air powered, semi automatic seal system.

These systems come with Micro Knife Impulse sealing technology that uses a teflon coated single piece band ribbon located in upper seal bar. It will seal PVC or polyolefin films without smoke or residue. They offer extra wide loading tables to make inserting materials into the shrink film easy. The heat-shrinking tunnel is designed to achieve the maximum results with the lowest use of electricity. Heat-shrinking operation is adjusted by setting the tunnel temperature and speed and can work with all types of heat-shrinking films.

These systems come in both manual or pneumatic versions that require air compressors. The semi automatic pneumatic systems allow the operator to feed the machine while the sealing bar goes up and down as programmed, i.e. every 2 or 3 seconds. The unit can also operate with a push button control to activate the sealing bar.

L Sealer Features:

• Micro-Knife band ribbon sealer
• Power discharge conveyor belt
• Seal size 16" W x 22" L

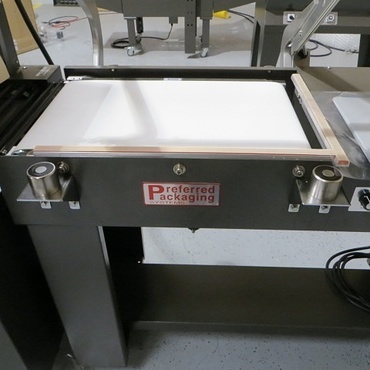

• Dual magnetic seal bar hold downs provide secure and firm sealing while allowing the operator to prepare the next package for sealing
• Controls for both variable dwell / seal time and variable conveyor time
• Stainless steel compensators allow for expantion and contraction of the micro knife when in use
• Seal bar has a return cylinder that automatically lifts the bar when the hold down magnets release
• Linear bearings on seal area allows for forward and backword movement, providing any size package to be positioned so it runs into the center of the tunnel.

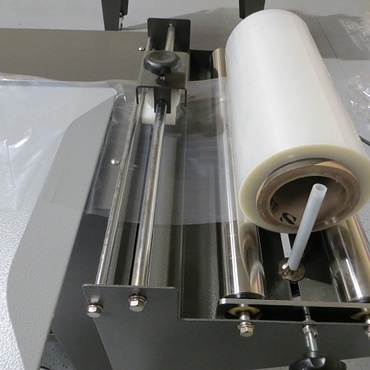

• Easy load film cradle holds up to a 20" wide roll of film

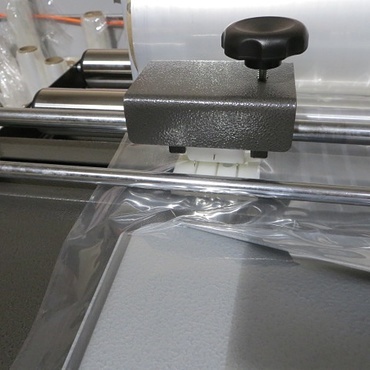

• Perforating pin hole punch allows for trapped air to evacuate the package
• Locking Casters on stand to enable the unit to be moved where needed.
• The PP1622MKCA model adds an air operated sealing bar. This system can be operated as a push button seal system or with automatic cycle timing, which opens and closes the seal bar at intervals set on the controls.Note: shop air is required for the air powered model.

Tunnel Features:

• Fully re-circulating air chamber
• Chamber size 18" W x 8" H x 28" L
• Live or dead roller rod conveyor

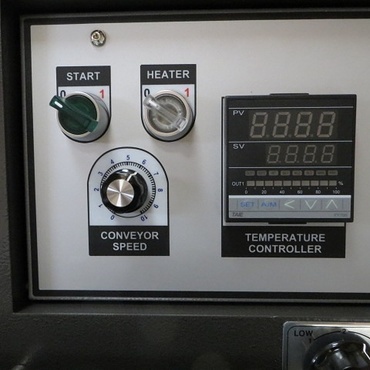

• Digital temperature control
• Adjustable air velocity control
• State of the art AC variable speed drive
• Chromed conveyor rollers and shafts eliminates rusting rollers
• Automatic tunnel cool down with shut-off
• Sealed bearings on drive and idler shafts
• Heats up to 300° in less than 10 minutes
• Thermal overload protection on all motors
• Locking casters with leveling screws
• Anti-Jam safety on conveyor
• Easily adjustable crank handle allows for tunnel height adjustment

Specifications:

• Material: Stainless Steel
• Seal Dimensions: (L x W): 16" x 22"
• Max Film Width: 20"
• Tunnel Opening: (L x W x H): 28" x 18" x 8"
• Machine Dimensions: (L x W x H): 103" x 32" x 62"
• Shipping Weight: 950 lbs.
• Power: 220Volt, Single Phase, 45 Amp
• Air: 50 PSI required for PP1622MKCA model only
