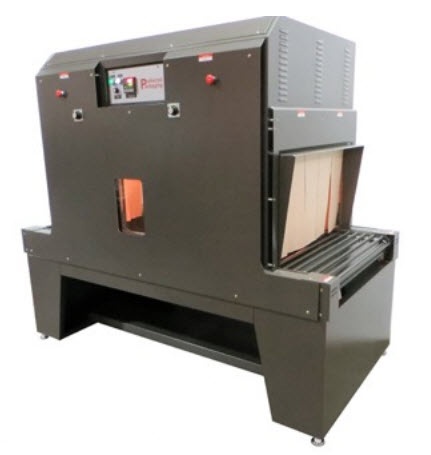

SHRINKWRAP TUNNEL | Preferred Pack PP6520-96 High Capacity Production 60 Inch Shrinkwrap Tunnel
Description
SHRINKWRAP TUNNEL | Preferred Pack PP6520-96 High Capacity Production 60 Inch Shrinkwrap Tunnel
The PP6520-96 Tunnel is a great general purpose shrink tunnel that can be used for a wide variety of applications. Can be used with shrink bands, neck bands, full body sleeves, used with shrink film, used as drying or curing tunnel etc.
Preferred Pack PP6520-96 High capacity production shrink tunnel with variable air velocity,re-circulating air system, digital temperature control, Heavy Duty 5/8” diameter live roller rod conveyor, AC Variable speed drive 0 to 100 FPM, Automatic cool down with shut off. Dual chamber features Dual 1HP Blower Motor. Dual heater banks, Dual variable air velocity controls, live rollers, and a 96 inch long chamber.
Standard Features Include:
- Fully Re-Circulating Air Chamber
- Live Roller Rod Conveyor
- Digital Temperature Control 0-400°
- Adjustable Air Velocity Control
- State-of-the-Art AC Variable Speed Drive 0-75 FPM
- Chromed Conveyor Rollers and Shaft (No Rust)
- Automatic Tunnel Cool Down with Shut Off
- 1HP Blower Motor
- Sealed Bearings on Drive and Idler Shafts
- Quietest Tunnel on the Market
- Heats up to 300° F in less than 15 minutes
- Thermal Overload Protection on All Motors
- Locking Casters with Leveling Screws
- Anti-Jam Safety Features on Conveyor
- 15 KW Heater Bank
SPECIFICATIONS
- Chamber Size :96L x 65W x 20H Inch
- Blower Motor :Dual 1HP
- Heater Bank : Dual 15kW
- AV Controls : Dual
- Volts : 220
- Amps : 75
- Phase : 3
- Weight : 2400 (lbs)
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
Manufacturer Part #: | |
Dimensions (LxWxH): | 64.00in. x 76.00in. x 34.00in. |
SPECIFICATIONS
|
