Description

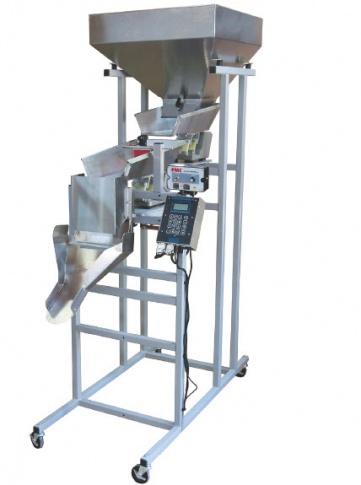

Preferred Pack PPS-6 Cascading Weight and Fill Scale,System

All contact surfaces are stainless steel with powder coated chassis. Features self adjusting bulk and dribble speed control. 600-800 fills per hour, 120 volt 5 amp.

The S-6 model is designed to fill harder to run products like crackers, chips and other non-free flowing products. Cascading feed pan with 24" x 24" (3.5 cubic foot hopper. Controller range up to 10 lbs. 600-800 fills per hour 120 volt, 5 amp, .25cfm at 30 psi.

Model S-6 Cascading Net Weigh Filler is specifically engineered to run especially difficult dry bulk materials such as crackers, chips, and other non-free-flowing products. With the vibratory bulk/dribble feeder, the Model S-6 can fill 0.5 oz. to 10 lbs. bags at a rate of 600-800 bag/hr. with accuracies up to +/-1.0 gram (0.001 lbs.). The compact Model S-6 requires only 2 x 4 of floor space and is compatible with virtually all open mouth bags and rigid containers.

STANDARD FEATURES

• Bulk material from 0.5 oz. to 10 lbs.
• Designed for difficult-to-run, non-free-flowing products

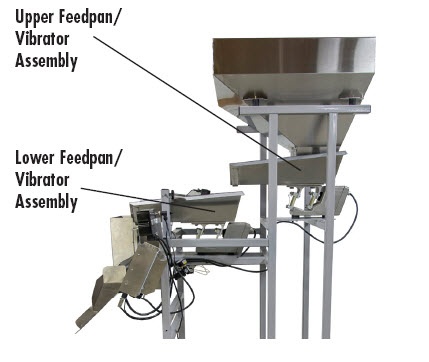

• Cascading feed pans
• Reads out to 1 gram or .001 lbs
• Controller range up to 10 lbs
• Powder-coated chassis with stainless steel surfaces

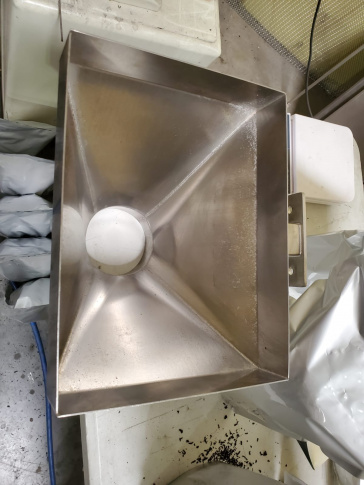

• Supply hopper size: 24" x 24" (3.5 cu. ft.)
• Standard funnel size: 2.5" x 2.5"
• Overall height: 74.5"
• Requires only 24" x 48" of floor space
• Automatic tare adjustment
• Self-adjusting bulk & dribble speed controls
• Can achieve 600-800 fills-per-hour

OPTIONS

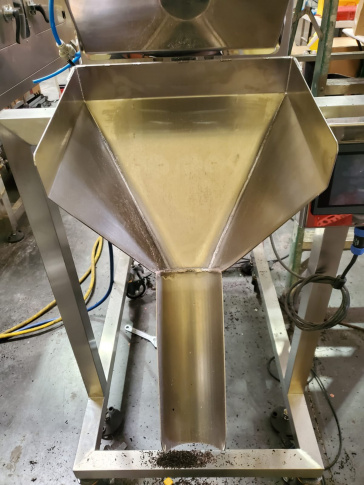

• Discharge chute
• Discharge chute adapters
• Dribble feed gate
• Stainless steel chassis
• 240VAC 50HZ motor

UTILITY REQUIREMENTS

• Electrical: 120VAC @7 AMPS, Single-Phase, 50/60HZ (standard wall outlet)
• Air: <0.25cfm @ 30psi
