Description

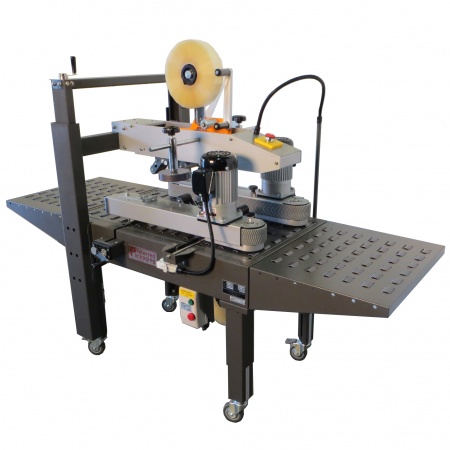

The Preferred Pack CT-50-3 is a semi-automatic random carton sealer featuring the new universal tape head that will run 3" tape. The operator simply folds the top flaps of the corrugated carton and feeds it into the machine. The box size must be at least 6 inches in length and can have an unlimited maximum length to be properly sealed. This four-belt drive (two top belts and two side drive belts) is a heavy-duty versatile machine designed for dependable performance and easy operation.

Standard Features:

• Interchangeable Tape Heads

• Side Pressure Rollers to Close Box Top

• 2 Side Drive Belts - Positive Feed

• Heavy Duty Locking Casters

• Fully Adjustable Legs



• 2" (72mm) Tape Heads

• In-feed Conveyor

• Exit Conveyor

• Stainless Steel Frame



• Carton Size
  Length: 6" min. to infinite
  Width: 4" min. to 20" max.
  Height: 4" min. to 20" max.

• Machine Dimensions: 36"L x 27"W x 53"H

• Machine Speed: 75ft./min. up to 2000 cartons per hour. Production rate depends on carton size and operator dexterity.

• Power: 110v, single phase, 10 amp

• Weight: 320 lbs. shipping weight 370 lbs.

• Max. Box Weight: 65 lbs.

• Tape Head Specs: 3" (48 mm) wide - 1,000 yard or 1,500-yard rolls

• Warranty: 1 yr. on all parts
