Description

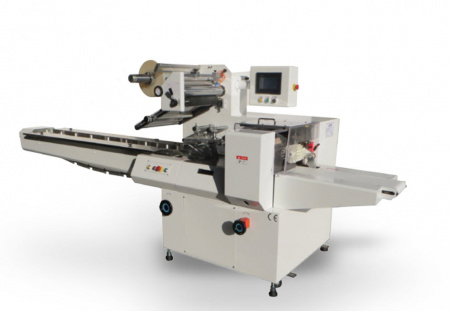

Wrapper | Preferred Pack S-5671 (3) Axis High Speed Servo Drive Horizontal Flow Wrappers

FEATURES

• High Speed - up to 250 ppm with Dual Jaw
• (3) axis servo motor drive for infeed, fin seal and end seal
• Siemens PLC control module
• 10.4 Inch color touch screen
• 100 program memory
• Over-load protection for end seal with automatic disengage
• Photo eye for print registration

SPECIFICATIONS

• Speed :30 to 250 ppm
• Bag Length :5.11 Inch (130 mm) to 23.6 Inch (600 mm
• Max Film Width :28 Inch (710 mm)
• Max Product Width :10.4 Inch (265 mm)
• Max Product Height: 1.18 Inch (30 mm) or 2.36 Inch (60 mm) or 3.5 Inch (90 mm)
