Description

Poly Bundlers | Preferred Pack SFE-AU SERIES Model SFE-800AU Inline Fully Automatic Sleeve Wrapper (w/o Tunnel)

Fully Automatic
Right Angle Infeed

PLEASE CALL FOR A SHIPPING QUOTE.
Due to the size and weight of a Wrapper Machine and the unique delivery circumstances involved, each shipment and delivery is custom. To make entering your order for a Wrapper Machine easier, we display free shipping on the site and in the Shopping Cart. After you submit your order, we'll contact you to gather the necessary information to calculate a precise shipping cost. We set up our Shopping Cart to gather information; you are NOT charged when you go through it. Just to let you know, we will not charge you for the Wrapper Machine or Shipping without your agreement.

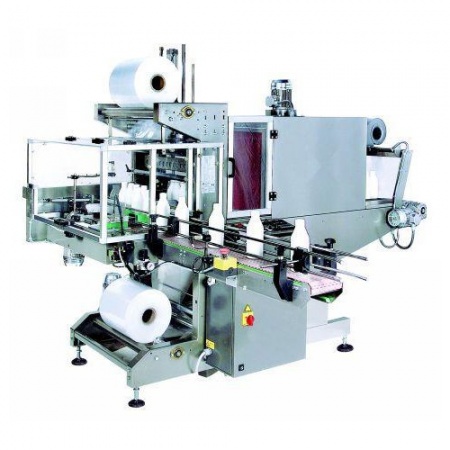

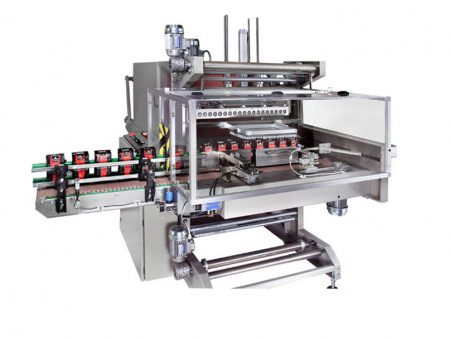

Preferred Pack” Model SFE- 800AU Fully Automatic Right (or left) Angle Poly Sealer Only-No Tunnel. Seal size of 29.5” Wide x 16” H. As the product travels down the right-angle infeed conveyor a photo eye is activated by the product and the product pusher advances the product at a 90-degree angle past the cross-seal bar, once the pusher is retracted the seal bar is activated to seal the product then automatically advances out of the seal area presumably into a shrink tunnel. This machine will utilize a single lane configuration to push one row of products at a time.

FEATURES

29.5-Inch-Wide Hot Knife Seal Bar with safety switches
Delta PLC Program logic controller
This system is designed to be used with Trayed product not lose bottles
Adjustable infeed guide rails for different product widths
90 degree “Right or Left Angle Infeed” (Select at time of order), plastic slip top conveyor belting to feed product into machine (Conveyor width TBD based on product size)
Independent Digital temperature controls for seal bar
Top and Bottom film rack with independent motor drive
Heavy duty motor unwind for top and bottom film drive rollers
Film threading diagram for top and bottom rolls of film
Emergency Stop Switch
Pneumatic product hold down to stabilize product on discharge conveyor
Mechanical pusher to increase output
Machine speeds of 10-12 PPM depending on product size and film gauge used
Delta PLC and Delta motor inverters
Safety Intralox switches-If door is opened machine will automatically shut off
220-volt 3 phase power supply (480 volt also available)
Exceeds OHSA safety standards
Air regulator with water trap
Machine is delivered on a heavy-duty pallet fully crated for protection during shipment.

SPECIFICATIONS

Speed:5 to 15 PPM (Depending on product size and film thickness.)
Electrical:220V - 50 Amp - 3 Phase
Seal Size:29.5 Inch
Max Roll Width:29.5 Inch
Max Pkg Length :19.5 Inch
Tunnel Size (L x W x H):40 x 29 x 17 Inch
Warranty :1 year on parts

DEMO VIDEO

SFE-800AU-T Water Bottles no Tray
