Description

Puloon | Eagle Eye 7–V Mixed Bill Counter | Banknote Sorter | Value Counter |TITO Scanner

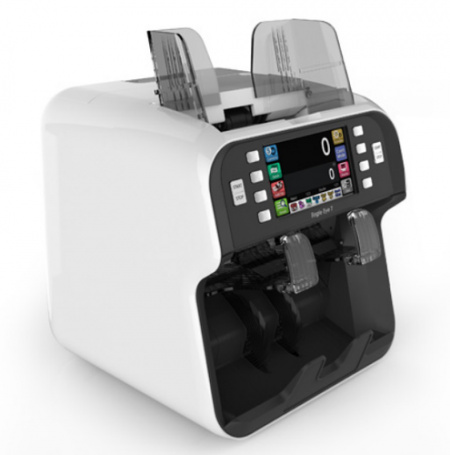

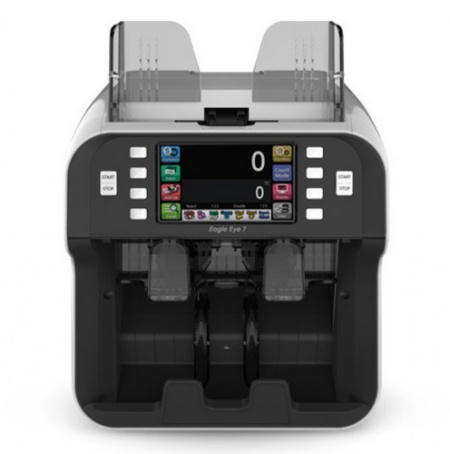

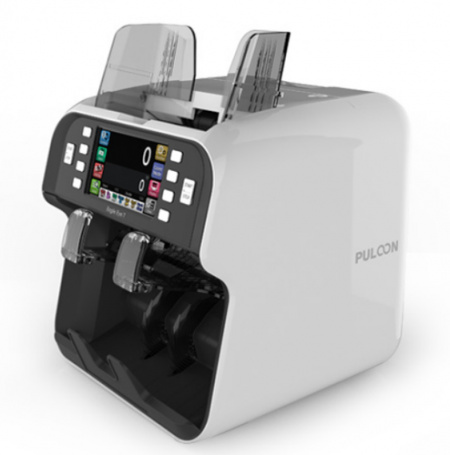

Eagle Eye 7-V is a high-performance Mixed Bill Counter-Sorter and Currency Discriminator. This advanced Counter was developed bu Puloon from accumulated knowledge and experiences in terms of mechatronics and recognition technology. The Eagle Eye 7 Series (EE7) is designed with a compact size for space efficiency and the with an easy user interface for convenient and speedy work at site.

The EE7 banknote sorter / TITO archiver is a fast, high quality 2 pocket counter. EE7 will value count mixed banknotes while off-sorting TITO tickets into the reject pocket. The operator can then run the TITO tickets back through after finishing their clearance to capture images of the front and back of every TITO ticket. The image feature allows venues to discard physical tickets by keeping a digital copy.

FEATURES

• High resolution dual image scanning
• Mixed / sort / face / window / batch function
• High Speed Value Counting / sort - 1200 notes per minute
• 5-inch touch screen display
• Easy maintenance for cleaning and clearing jams
• Simple user interface
• Easy to upgrade via USB port
• High quality, lowest cost 2 pocket with TITO imaging
• Compact and Modern Design
• Multi-Currency Processing
• Powerful Fitness Sorting (Option)
• Reliable Serial Number Recognition (Option)

SPECIFICATIONS

• Model Name/Number:EAGLE EYE 7
• Brand:Puloon
• Hopper Capacity:500 notes (Extendable)
• Dimensions:273 x 277 x 283 mm (11 x 11 x 12 in)
• Power Consumption:100 ~ 240V AC,50/60Hz
• Display Type:5"Touch LCD
• Interface:2 Serial ports,USB1.1,USB2.0,LAN
• Reject Capacity:100 notes
• Stacker Capacity:200 notes
• Weight:7.5 kg (17 lbs)
• Pockets:2 Pocket
• Speed:Value counting 1,000 notes/min.Fitness Sorting 1,000 notes/min.Serial No.Recognition 800 notes/min.
