Description

Ribao BCS-160 Ribao BCS-160 Bank Grade Two-Pocket Mixed Value Counter, UV/MG/MT/IR/CIS and Serial Number Counterfeit Bill Counter & Sorter, 2-Year After Service

FREE SHIPPING ON THE BCS-160 IN THE CONTINENTAL U.S. EXCLUDING ALASKA AND HAWAII.

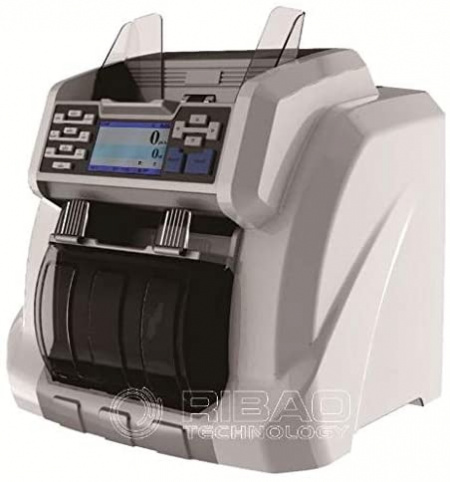

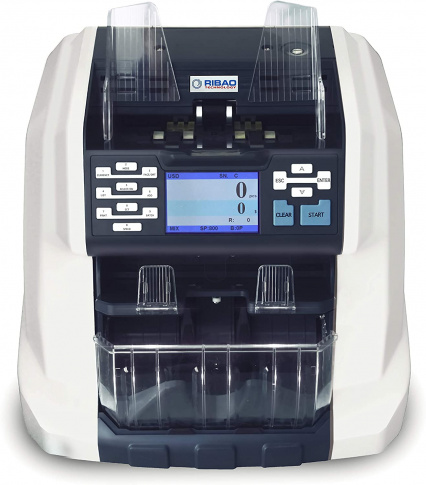

THE BCS-160 model is a Non-stop Two-pocket banknote discriminator banknote sorter, which is a cost-effective, reliable, and heavy-duty machine. It is equipped with DOUBLE CIS, the latest advanced counterfeit detection technology, it is very easy to upgrade the software by USB to fit the new issues and new counterfeit banknotes.

Also, it can collect banknote images both through USB and LAN ports. This machine is ideal for bank tellers and CIT companies where banknotes need to be counted. This machine is ideal for bank tellers and a CIT company where banknotes need to be counted.

DESCRIPTION

Compact size
- It can be placed even on a small table.

TFT Screen
- It has a clearly visible 3.5-inch TFT touch screen.

Multi-currencies Capability
- It can be installed with 12 different currencies in one machine. BCS-160 supports 12 currencies. Current list is:

• USD – United States Dollar
• AUD – Australian Dollar
• BRL – Brazilian Real
• CAD – Canadian Dollar
• CHF – Swiss Franc
• CLP – Chilean Peso
• COP – Colombian Peso
• CRC – Costa Rican Colón
• EUR – Euro
• GBP – British Pound Sterling
• MXN – Mexican Peso
• PEN – Peruvian Sol
• XCD – East Caribbean Dollar

More are being added every day. If you don't see the currency you need, please contact us.

Reliable Counterfeit Detection
- It can detect the note by UV, MG, MT, IR, CIS, and serial number.

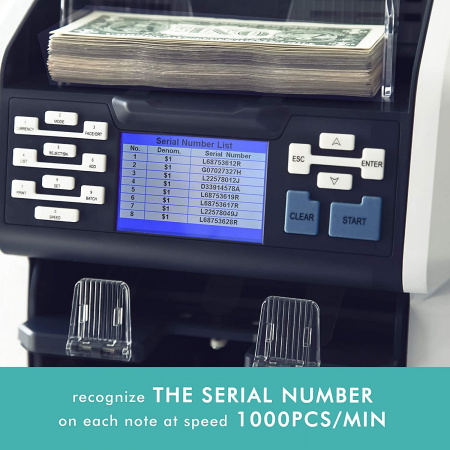

Serial Number Read and Print
- It can read the serial number from both sides, output, and print the serial number.

Easy Upgrade
- It can be upgraded through a USB memory stick or PC interface for the new currency and improved software.

Banknotes Info Collection
- It can support collecting the banknotes image, UV, MG, IR information through USB or LAN port,
- RIBAO engineer can use this information for software development.

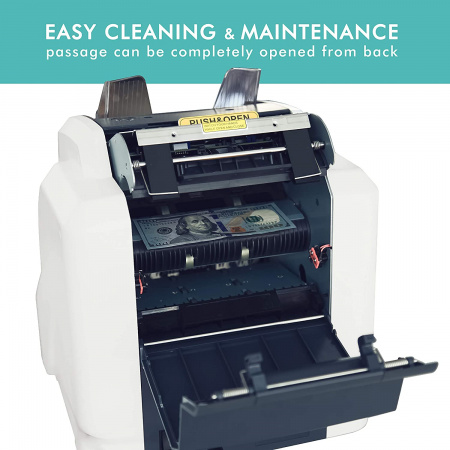

Easy Jam Removal and Sensor Cleanning
- It is easy to open the passage from the rear side to clear jammed notes and clean the sensors.

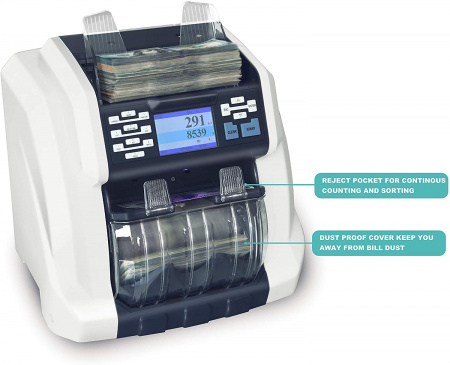

Dust Proof Cover
- Its distinctive dust-proof cover is very good for users’ health.

SPECIFICATIONS

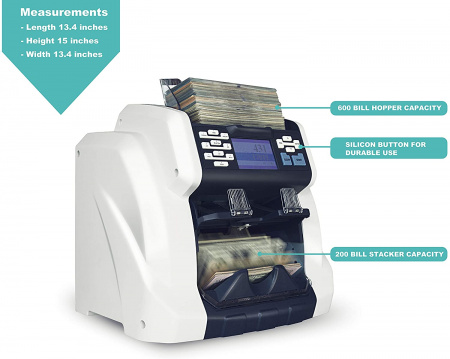

• Hopper Capacity :600 pcs
• Stacker Capacity :200 pcs
• Rejected pocket capacity : MAX 100pcs
• Display: Color TFT-LCD (89 mm) (3.5 inch), Touch Screen
• Suitable Note Size : Length: 100 mm ~ 175 mm (4 ~ 7 inch) / Width: 50 mm ~ 90 mm (2 ~ 3.5 inch)
• Suitable Note Thickness :0.05 mm ~ 0.12 mm
• Speed (pcs / min) :800/1000pcs/min(MIX & SDC Mode) / 1200pcs/min(CNT Mode)
• Batch Number : 5 - 199 pcs

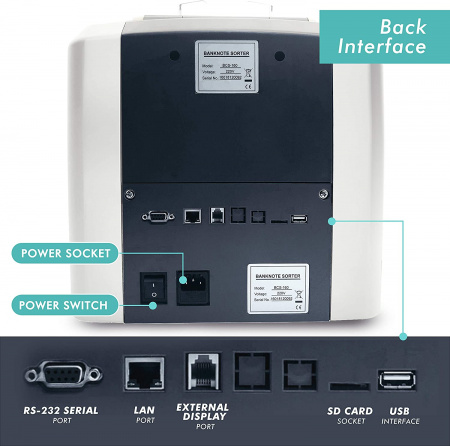

• Connectivity: External printer/PC port: RS232 / LAN port: RJ45 / External display port: RJ12 / Software upgrade/Information collection port: USB/LAN / Save counted information port: Micro-SD card
• Operation modes: Single denomination sorting / Mix counting/Pieces counting / Face / Orientation Sorting
• Counterfeit Detection : Ultraviolet detection(UV) / Magnetism detection(MG) / Metal thread detection(MT) / Infrared image detection(IR) /Double-sided image detection
• Power Supply : AC 220V 50Hz ±10% / AC 110V 60Hz ±10%
• Power consumption : Sleeping mode ?15W / Operation mode?70W
• Machine Dimension (LxWxH) : 315 x330 x330 mm (12 x 13 x 13 Inch)
• Weight : 13 KG (29 LBS)
• Warranty and Technological Support: Warranty and technological support: Two (2) years after service against manufacturer defect. Software can be upgraded through the USB port. It can be installed with 14 different currencies in one machine.
